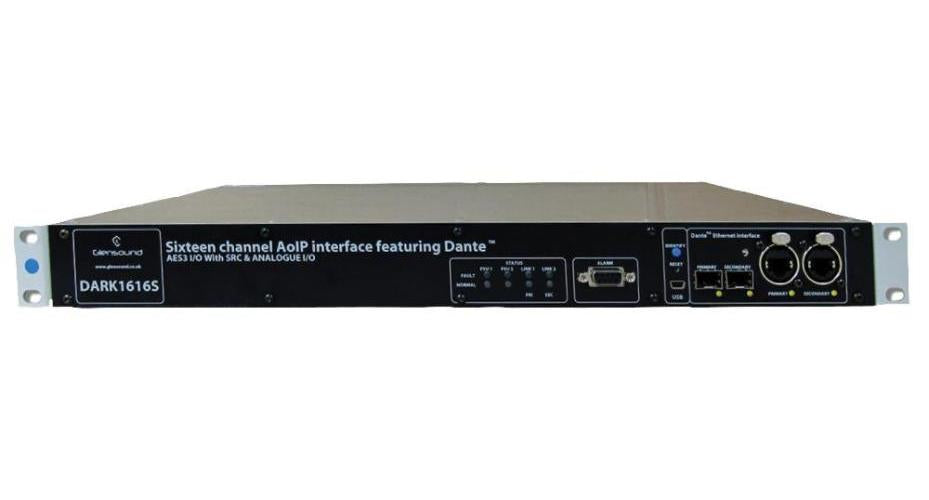

16 Channel Analogue & AES3 I/O Network Audio Interface with Dante World Clock - DARK1616S
16 Channel Analogue & AES3 I/O Network Audio Interface with Dante World Clock - DARK1616S
Couldn't load pickup availability
The DARK1616S is a versatile break IN/OUT box for sending/receiving both analog and digital (AES3) audio to/from a network utilizing the Dante AoIP protocol. In total there are 16x channels of audio sent from the Dark1616S into the network. The Dark1616S has 8x AES3 inputs and 16x analog inputs. These incoming circuits are provided as outputs from the Dark1616S in both AES3 and analog .Being designed for resilient broadcast applications, the Dark1616S features both redundant power supplies and redundant Dante network links with link status GPO. The unit can be remote controlled using our GlenController Windows10 App that allows such things as the dBFs levels or clock masters to be set and provides IN/OUT metering.
Features
- Audio inputs: 16x Analog 25 Way D connectors wired to AES59
- Audio outputs: 16x Analog 25 Way D connectors wired to AES59
- AES3 I/O: 8x 25 Way D connectors wired to AES59
- 16x Channels of network audio interface for Dante/AES67
- Windows10 GlenController App for remote control
- Redundant network links (2x Fibre SFP and Copper RJ45) and 2x mains IEC power supply
- 1U rackmountable
- AES3 outputs can be locked to Word Clock input, AES3 input or Dante Clocks
- Word Clock type: BNC unbalanced 75R, 44.1 to 192kHz
- Input impedance: <20kR (600R termination)
- Output impedance: <50R
- Network interface: 2x Copper Neutrik Ethercon RJ45, 2x SFP slot
- Phantom power: 48V
- AES67 Compliant: Audinate Brooklyn II chipset
- Mains inputs: 2x Filtered IEC, 100 to 240V AC, 47 to 63Hz
- Interchannel crosstalk: >101dB
- Alarm connector: Solid State relay 9 Way D socket
- Noise: -93dBu (residual)
- Frequency response: 20Hz to 22KHz
- Dimensions (HxWxD): 48x482x300mm
- Weight: 3.3kg
| Specifications | |
|---|---|
| Product Range | GLENSOUND Dante Rackmount AES3/Analog Interfaces |
| Plug Type | UK |
| Product Contents: | DARK1616S, 2m RJ45 Cat5 Network Cable, 2m IEC power cable, Handbook |
| Country of Origin: | Great Britain |
