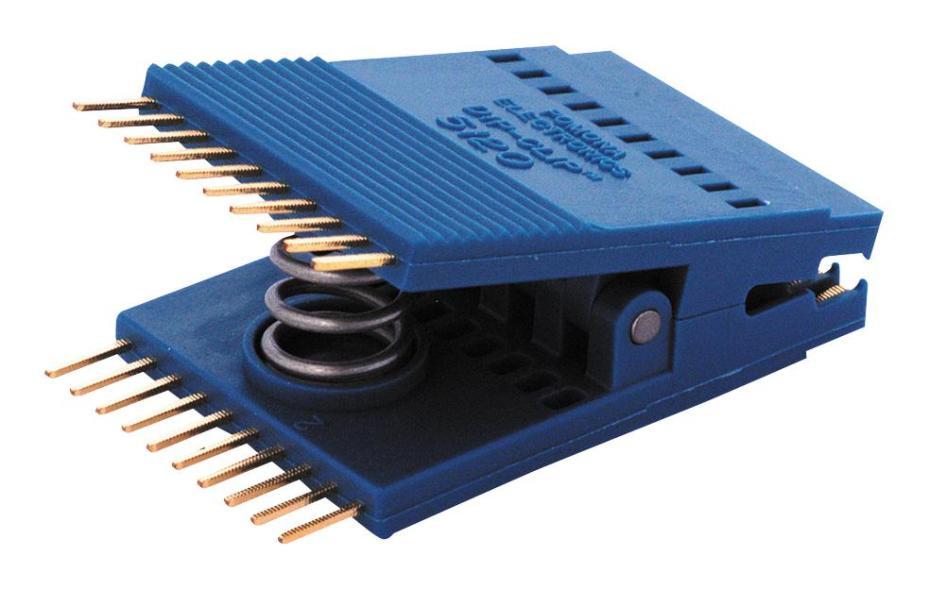

16-Pin IC Test Clip - 3916A.
16-Pin IC Test Clip - 3916A.
Regular price
£23.49 GBP
Regular price
Sale price
£23.49 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Pomona DIP Clip test clips are designed for testing dual-in-line IC packages on PC boards. These devices incorporate many built-in features that assure a positive electrical connection as well as hands-free testing.
Features
- Contacts (0.040" wide on lower end) are serrated for the best electrical contact
- 0.025"x0.028" serrated test points on upper end will accept wire wraps or mini test clips
- Moulded barriers between contacts allows live board connections without accidental shorting of contacts
- Can also be used as an insertion tool for DIPs
- Contacts are spring-tempered nickel silver
- Suitable for emulation, field service, failure analysis, and for use with logic analysers
| Specifications | |
|---|---|
| IC Case Styles | DIP |
| No. of Contacts | 16Contacts |
| Contact Plating | Silver Plated Contacts |
| Product Range | DIP Clip Series |
| Country of Origin: | United States |
