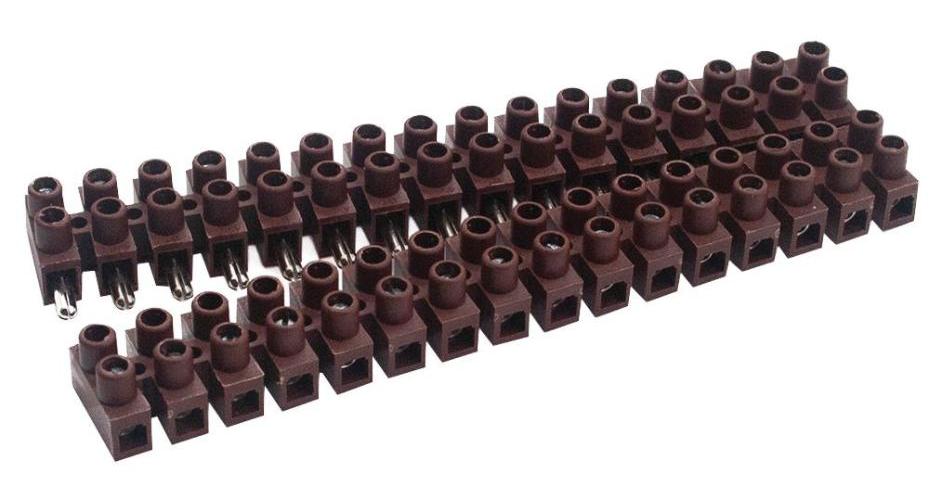

16 Pole Plug & Socket Terminal Block, 450V AC, 35A, Polyamide PA6.6, Brown - HY115/16 FVSP
16 Pole Plug & Socket Terminal Block, 450V AC, 35A, Polyamide PA6.6, Brown - HY115/16 FVSP
Regular price
£14.69 GBP
Regular price
Sale price
£14.69 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The HY115/16 FVSP from Hylec is a 16-Pole plug and socket terminal block constructed from natural Polyamide PA6.6. The HY115/16 FVSP has a 11.5mm pitch and a rating of 35A at 450VAC.
Features
- Minimum conductor size: 6mm2
- Maximum voltage: 450VAC
- Maximum current: 35A
- Pitch: 11.5mm
- Dimensions (LxWxH): 226.2x46.2x18mm
- Diameter: 3.5mm
- UL94 rating: UL94V2
- Terminal screw material: White zinc plated steel
| Specifications | |
|---|---|
| Pitch Spacing | 11.5mm |
| No. of Positions | 12Ways |
| Conductor Area CSA | 6mm2 |
| Wire Connection Method | Screw |
| Rated Current | 35A |
| Rated Voltage | 45V |
| Product Range | HY115 Series |
| Country of Origin: | Italy |
