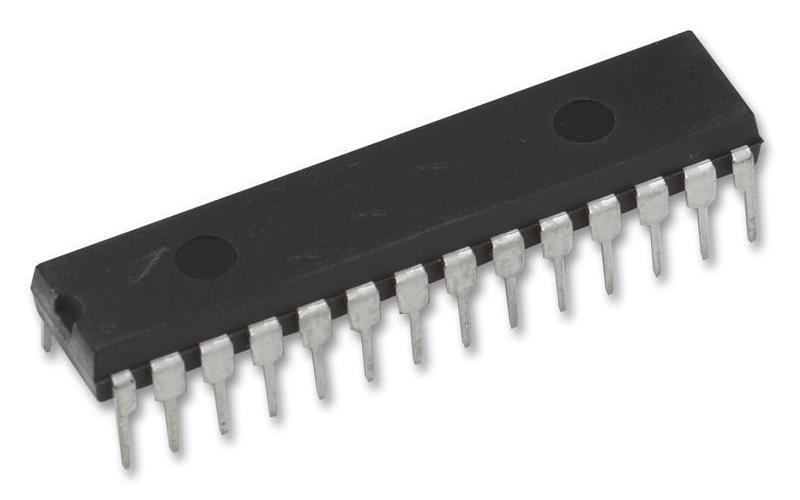

16bit I/O Expander with I2C Interface and 1.7MHz Bus Frequency in PDIP-28 Package - MCP23017-E/SP
16bit I/O Expander with I2C Interface and 1.7MHz Bus Frequency in PDIP-28 Package - MCP23017-E/SP
Regular price
£3.29 GBP
Regular price
Sale price
£3.29 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The MCP23017-E/SP consists of multiple 8 bit configuration registers for input, output and polarity selection. The system master can enable the I/Os as either inputs or outputs by writing the I/O configuration bits (IODIRA/B). The data for each input or output is kept in the corresponding input or output register. The polarity of the Input Port register can be inverted with the Polarity Inversion register. All registers can be read by the system master.
Features
- 16 bit remote bidirectional I/O port
- High speed I2C interface
- Three hardware address pins to allow up to eight devices on the bus
- Configurable interrupt output pins
- INTA and INTB can be configured to operate independently or together
- Configurable interrupt source
- Polarity Inversion register to configure the polarity of the input port data
- External Reset input
- Low standby current: 1?A max.
| Specifications | |
|---|---|
| Chip Configuration | 16bit |
| Bus Frequency | 1.7MHz |
| IC Interface Type | I2C, Serial |
| Supply Voltage Min | 1.8V |
| Supply Voltage Max | 5.5V |
| Interface Case Style | DIP |
| No. of Pins | 28Pins |
| No. of I/O's | 16I/O's |
| Product Range | MCP23X17 device family |
| Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
| Country of Origin: | Thailand |
