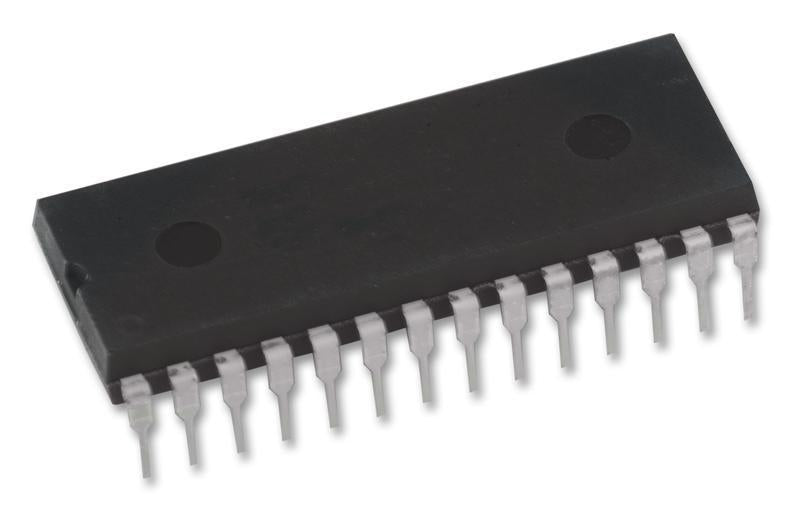

16bit I/O Expander with SPI Interface and 10MHz Bus Frequency in PDIP-28 Package - MCP23S17-E/SP
16bit I/O Expander with SPI Interface and 10MHz Bus Frequency in PDIP-28 Package - MCP23S17-E/SP
Regular price
£3.39 GBP
Regular price
Sale price
£3.39 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The MCP23X17 consists of multiple 8-bit configuration registers for input, output and polarity selection. The system master can enable the I/Os as either inputs or outputs by writing the I/O configuration bits (IODIRA/B). The data for each input or output is kept in the corresponding input or output register. The polarity of the Input port register can be inverted with the polarity inversion register.
Features
- Cascadable for up to 8 devices on one bus
- 16-bit input/output port expander with interrupt output
- 25mA sink/source capability per I/O
- Supports up to 10MHz SPI clock speeds
- Polarity Inversion register to configure the polarity of the input port data
- Configurable interrupt output pins
- External reset input
- Low standby current of 1 uA (max)
| Specifications | |
|---|---|
| Chip Configuration | 16bit |
| Bus Frequency | 10MHz |
| IC Interface Type | Serial, SPI |
| Supply Voltage Min | 1.8V |
| Supply Voltage Max | 5.5V |
| Interface Case Style | DIP |
| No. of Pins | 28Pins |
| No. of I/O's | 16I/O's |
| Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
| Country of Origin: | United States |
