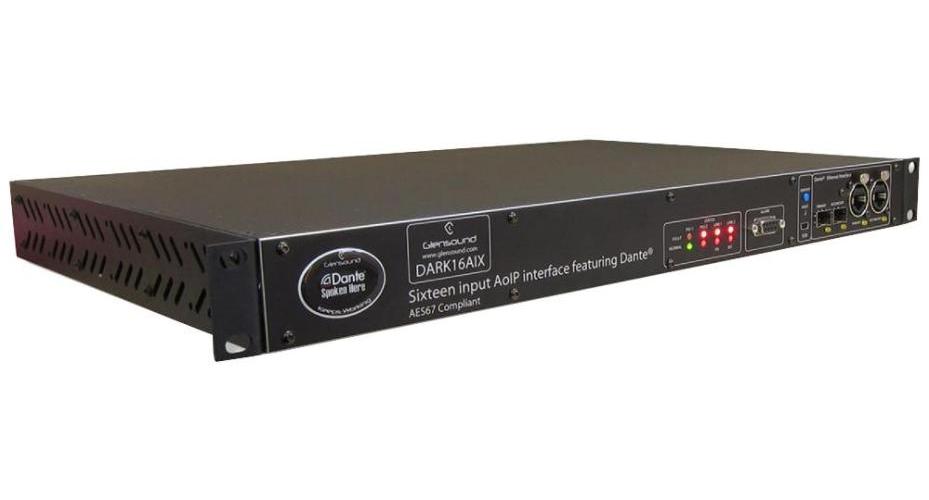

16CH AoIP Input Interface with Dante/AES67 - DARK16I
16CH AoIP Input Interface with Dante/AES67 - DARK16I
Couldn't load pickup availability
The DARK16AIX is a versatile box for converting analog audio inputs to an AoIP system utilising the Dante & AES67 AoIP protocols. In total there are 16x audio inputs (Neutrik XLR), all being simultaneously converted to the AoIP network via high quality low noise analog-to-digital converters. Being designed for resilient broadcast applications, the DARK16AIX features both redundant power supplies and redundant Dante network links with link status GPO. Both primary and secondary network links are provided with both magnetic (copper RJ45) and fibre (SFP) interface connections. Being designed originally for broadcast the DARK16AIX has inbuilt resilience for both its network connections and power supplies. It is also suitable for Theatre, Installation and Pro Audio use.
Features
- Audio inputs: 16x Analog Neutrik 3 pin XLR
- Audio sampling rate: 32 to 192kHz
- Low noise AD converters
- Redundant network links (2x Fibre SFP and Copper RJ45) and 2x mains IEC power supply
- 1U rackmountable
- Frequency response: 20Hz to 22KHz
- Input impedance: <20kR (600R termination)
- Noise: -93dBu (residual)
- Network interface: 2x Copper Neutrik Ethercon RJ45, 2x SFP slot
- AES67 Compliant: Audinate Brooklyn II chipset
- Mains inputs: 2x Filtered IEC, 100 to 240V AC, 47 to 63Hz
- Power consumption: 18W
- Interchannel crosstalk: >101dB
- Alarm connector: Solid State relay 9 Way D socket
- Dimensions (HxWxD): 48x482x300mm
- Weight: 2.8kg
| Specifications | |
|---|---|
| Product Range | GLENSOUND Dante Rackmount Analog Input Interfaces |
| Plug Type | UK |
| Product Contents: | DARK16AIX, 2m RJ45 Cat5 Network Cable, 2m IEC power cable, Handbook |
| Important Product Info: | Multiple DARK16AIX units can be directly connected with each other with no external network hardware |
| Country of Origin: | Great Britain |
