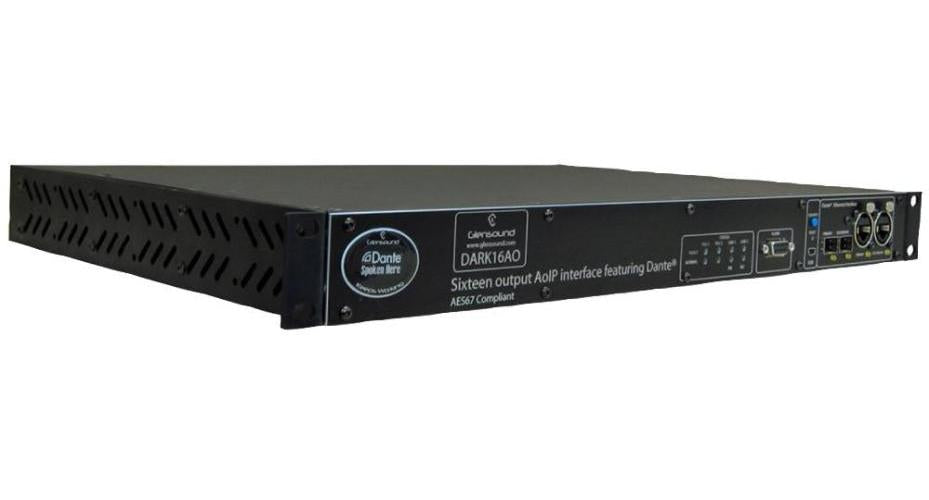

16CH AoIP Output Interface with Dante/AES67 - DARK16O
16CH AoIP Output Interface with Dante/AES67 - DARK16O
Regular price
£2,580.09 GBP
Regular price
Sale price
£2,580.09 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The DARK16AO is a 19" 1RU subrack that provides 16x high quality analog audio outputs from a Dante/AES67 AoIP network. These audio outputs are balanced line level signals and for ease of installation are presented on rear panel XLR sockets. Being designed originally for broadcast the DARK16O has inbuilt resilience for both its network connections and power supplies. The Dante system itself provides a completely transparent redundant link system which means that if the DARK16AO loses its primary link circuit, the secondary link would automatically take over with no loss of audio. It is suitable for Theatre, Installation and Pro Audio use.
Features
- Audio outputs: 16x Analog Neutrik 3 pin XLR
- Audio sampling rate: 32 to 192kHz
- Low noise DA converters
- Redundant network links (2x Fibre SFP and Copper RJ45) and 2x mains IEC power supply
- 1U rackmountable
- Frequency response: 20Hz to 22KHz
- Output impedance: <50R
- Noise: -93dBu (residual)
- Network interface: 2x Copper Neutrik Ethercon RJ45, 2x SFP slot
- AES67 Compliant: Audinate Brooklyn II chipset
- Mains inputs: 2x Filtered IEC, 100 to 240V AC, 47 to 63Hz
- Power consumption: 18W
- Interchannel crosstalk: >101dB
- Alarm connector: Solid State relay 9 Way D socket
- Dimensions (HxWxD): 48x482x300mm
- Weight: 2.8kg
| Specifications | |
|---|---|
| Product Range | GLENSOUND Dante Rackmount Analog Output Interfaces |
| Plug Type | UK |
| Product Contents: | DARK16AO, 2m RJ45 Cat5 Network Cable, 2m IEC power cable, Handbook |
| Important Product Info: | Multiple DARK16AO units can be directly connected with each other with no external network hardware |
| Country of Origin: | Great Britain |
