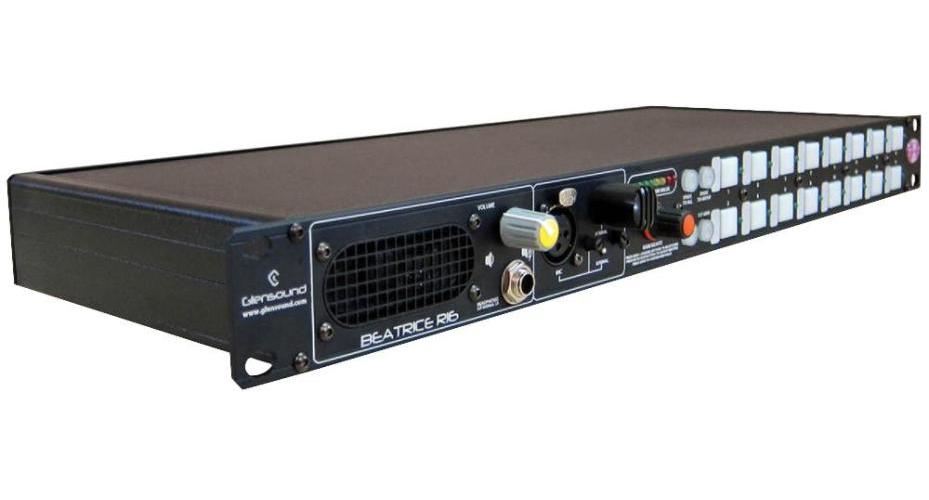

16CH Network Audio Rackmount Intercom with Dante/AES67 - BEATRICE R16
16CH Network Audio Rackmount Intercom with Dante/AES67 - BEATRICE R16
Couldn't load pickup availability
The Glensound BEATRICE R16 is a robust, 16x channel 1RU rackmount intercom with crystal clear audio designed for broadcast, theatre and professional audio applications. It is part of Beatrice intercom system that utilises the reliable and proven Dante network audio transmission protocol to allow real time distribution of uncompressed audio across standard networks. It is also fully compatible with other manufacturers' equipment using the Dante/AES67 protocol. This small desktop unit was designed to be very easy to use for the operator and simple to set up for the technician. It includes all the basic functionality required for small intercom systems and none of the overly complex installation requirements normally associated with large systems.
Features
- 16x Channels of intercom
- Dante routing & partyline
- Onboard mic & external mic input
- Intelligible loudspeaker built-in
- AES67 Compliant: Audinate Brooklyn II chipset
- Network interface: 2x RJ45 Neutrik Ethercon,2x SFP slots (1000Mbps)
- Single cable for power & audio (AoIP, PoE - 2m RJ45 lead provided), or mains powered
- Headphone output: 6.35mm TRS socket 32 to 1000R (can be safely connected to TS mono jack plug)
- Speaker output: Balanced analog output is provided for connecting to an external powered loudspeaker
- GPIO: GPO solid state relays, wired N'O & N'C; GPI Logic level pull down to ground to operate
- Headphone output: 6.35mm TRS socket 32 to 1000R (can be safely connected to TS mono jack plug)
- Network interface: 2x RJ45 Neutrik Ethercon,2x SFP slots (1000Mbps)
- Can receive 16x incoming audio channels, each at 48kHz
- Monitor selection, presence indication, mixer matrix
- Power consumption (PoE): <15W
- Duration of signal (call circuit): 2s
- Mains power supply: 100 to 240V AC ±10%, 50 to 60 Hz (2m IEC UK provided)
- Mains & PoE supplies are dioded together for glitch-free redundant operation
- Dimensions (HxWxD): 48x482x164mm
- Weight: 1.6kg
| Specifications | |
|---|---|
| Product Range | GLENSOUND Dante Rackmount Intercoms |
| Product Contents: | Beatrice D8, 1x 2m RJ45 cable Cat5, 1x 2m IEC power lead, handbook |
| Country of Origin: | Great Britain |
