1MHz USB Function Generator - PEREL
1MHz USB Function Generator - PEREL
Regular price
£68.49 GBP
Regular price
Sale price
£68.49 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

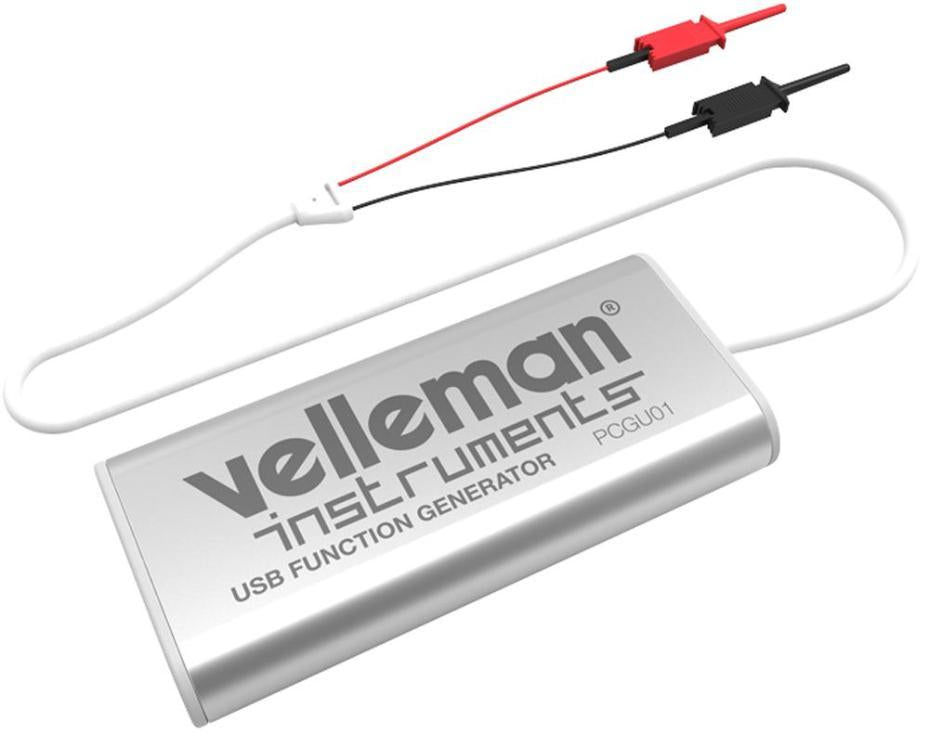

Simple-to-use PC USB miniature function generator with a frequency range of up to 1MHz. Generates sine, square and triangle waveforms, has a DAC resolution of 10-bits and an output of 0.2-10Vpp.
Product Info
- Download the free Windows software to control the various signals
- Includes a automated wave sequence generator
- Design enclosure
- Includes test leads and USB cable
- Sweep function
- Amplitude range: 200mVpp to 10Vpp at 1kHz, no load, 0V offset
- Amplitude range with offset: 200mVpp to 7.5Vpp at 1kHz, no load, -2.5V to +2.5V offset
- Offset range: 0 to -2.5V or +2.5V max. (resolution 0.5% of full scale)
- Typical sine wave distortion (THD): <0.02% at 1kHz, 0dB, 600R
- Square wave rise/fall time: <0.2μs
- Output impedance: 50R
| Details | |
|---|---|
| Bandwidth | 1MHz |
| Manufacturer Warranty | 1 Year |
| Plug Type | USB |
| Country of Origin: | Taiwan |
