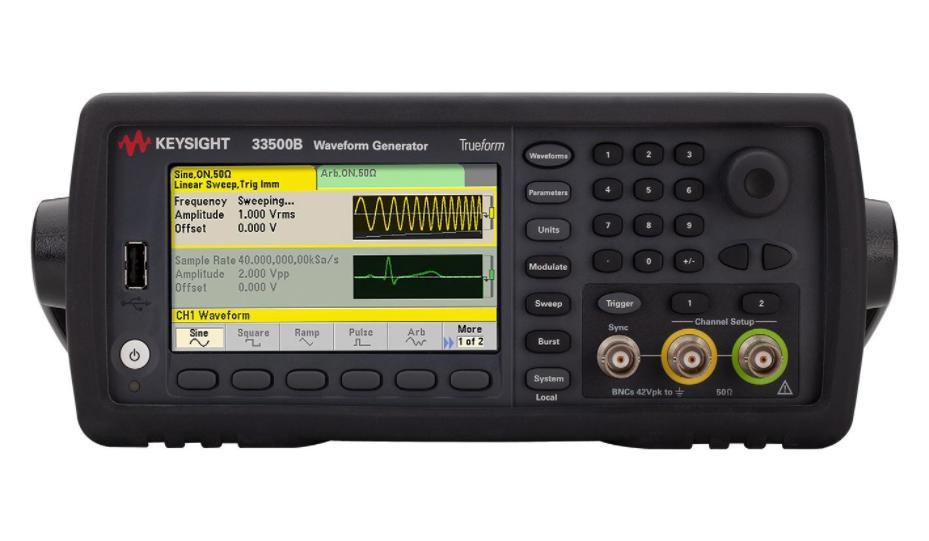

2-Channel Arbitrary Waveform Generator, 30MHz - 33522B
2-Channel Arbitrary Waveform Generator, 30MHz - 33522B
Regular price
£5,010.39 GBP
Regular price
Sale price
£5,010.39 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The 33500B Series waveform generators offer Superior signal integrity with Trueform technology providing highest resolution and lowest distortion. Flexibility to select needed functionality from eight models, with ability to upgrade later when your needs change. Intuitive front panel, complimentary software and localized help and manuals, and access to manuals from mobile devices. Like built-in LAN, USB and GPIB interfaces that make it easy to control your instruments or transfer your waveforms to your instrument.
Features
- So you can perform deeper testing - see One Page Summary for further information
- 30 MHz, 2-channel
- Jitter: < 40 ps
- THD: < 0.04%
- Amplitude ranges: 1 mVpp up to 10 Vpp
- 250 MSa/s sampling rate
- 16-bit amplitude resolution
- 1 MSa/channel memory, 16 MSa optional
- Waveform generator with arb capability
| Specifications | |
|---|---|
| Signal Generator Type | Arbitrary |
| No. of Channels | 2 Channel |
| Product Range | 33500B Series |
| Bandwidth | 30MHz |
| Signal Generator Modulation | AM, BPSK, FM, FSK, PM, PWM, Sum |
| Manufacturer Warranty | 3 Years |
| Plug Type | EU, UK |
| Product Contents: | BenchVue software license (BV0002B) is now included with your instrument. BenchVue makes it simple to connect, control instruments, and automate test sequences. |
| Important Product Info: | In addition, we offer calibration services for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration service page for more details. |
| Country of Origin: | Malaysia |
