2 Conduct Through Terminal Block, 35mm DIN Rail Mount, 10AWG to 24AWG, 41A, 800V - 282-101
2 Conduct Through Terminal Block, 35mm DIN Rail Mount, 10AWG to 24AWG, 41A, 800V - 282-101
Regular price
£2.79 GBP
Regular price
Sale price
£2.79 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

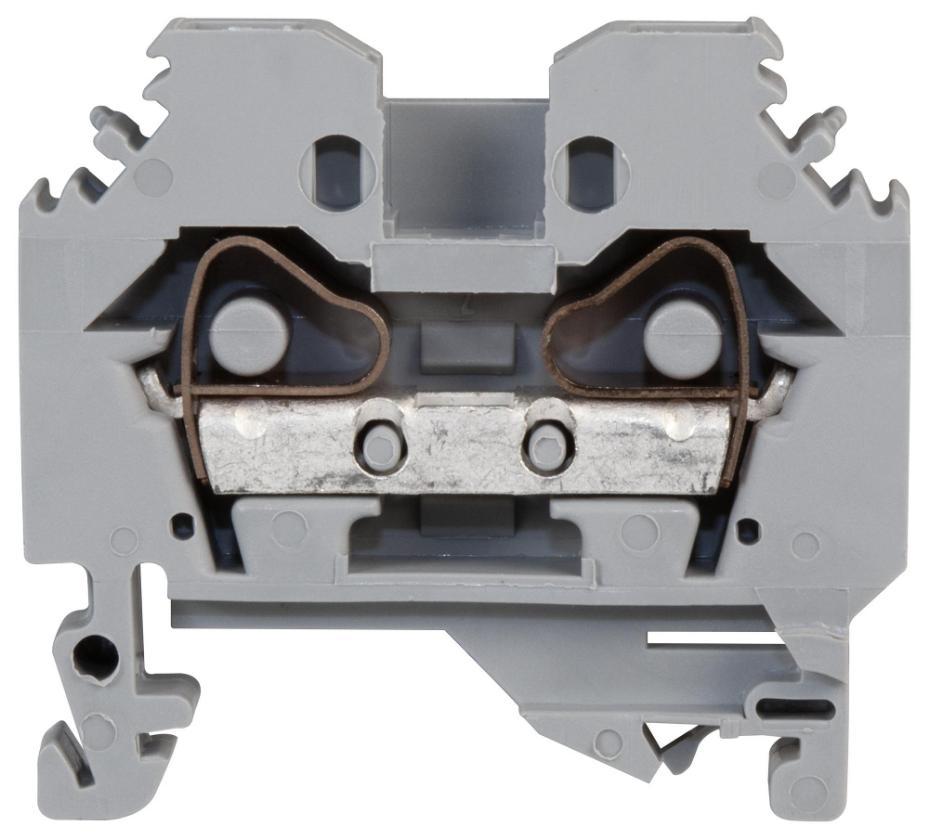

The 282-101 is a 2-conductor grey Through Terminal Block with side marking and side-entry wiring. This terminal block has polyamide 6.6 insulator and suitable for DIN 35 rail mounting. It accepts 24 to 10AWG wire size.
Features
- Cage Clamp® connection method
- Horizontal design
- UL94V-0 Flammability rating
| Specifications | |
|---|---|
| No. of Positions | 2Ways |
| Wire Size AWG Min | 24AWG |
| Wire Size AWG Max | 10AWG |
| Conductor Area CSA | 6mm2 |
| Wire Connection Method | Clamp |
| Rated Current | 41A |
| Rated Voltage | 800V |
| No. of Levels | 1 |
| Product Range | 282 |
| Country of Origin: | Germany |
