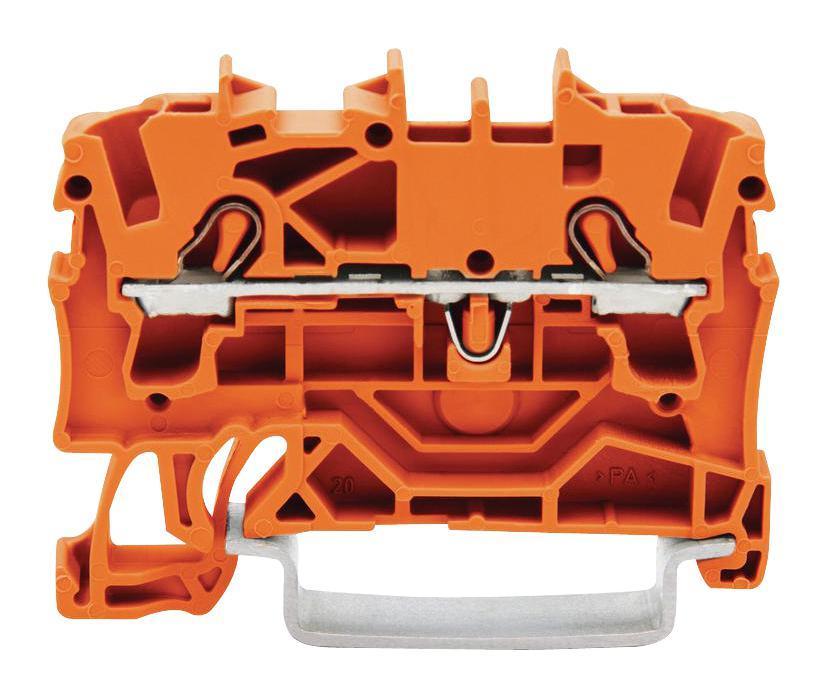

2 Conduct Through Terminal Block, Push in Cage Clamp, 35mm DIN Rail Mount, 22AWG to 12AWG, 800V, 24A, Orange - 2002-1202

2 Conduct Through Terminal Block, Push in Cage Clamp, 35mm DIN Rail Mount, 22AWG to 12AWG, 800V, 24A, Orange - 2002-1202

£2.19 GBP
£2.19 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Features

  • 35mm DIN rail mounted terminal block with Push-In CAGE CLAMP® technology
  • Push-in wire termination for faster installation
  • Fits cable of size 0.25mm2 - 4mm2 / 22 AWG - 12 AWG
  • Nominal cross-section: 2.5mm2
  • Nominal voltage: 800V
  • Rated Current: 24A
  • Front entry wiring
  • Screwless connection

Specifications
No. of Positions 2Ways
Wire Size AWG Min 22AWG
Wire Size AWG Max 12AWG
Conductor Area CSA 4mm2
Wire Connection Method Clamp
Rated Current 24A
Rated Voltage 800V
No. of Levels 1
Product Range TOPJOB S 2002-120x Series

EAN: 4017332999182
Manufacturer Part Number:
