25MHz Crystal Oscillator Clock, SMD, 3.2mm x 2.5mm, 3.3V - LFSPXO025165
25MHz Crystal Oscillator Clock, SMD, 3.2mm x 2.5mm, 3.3V - LFSPXO025165
Regular price
£3.19 GBP
Regular price
Sale price
£3.19 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

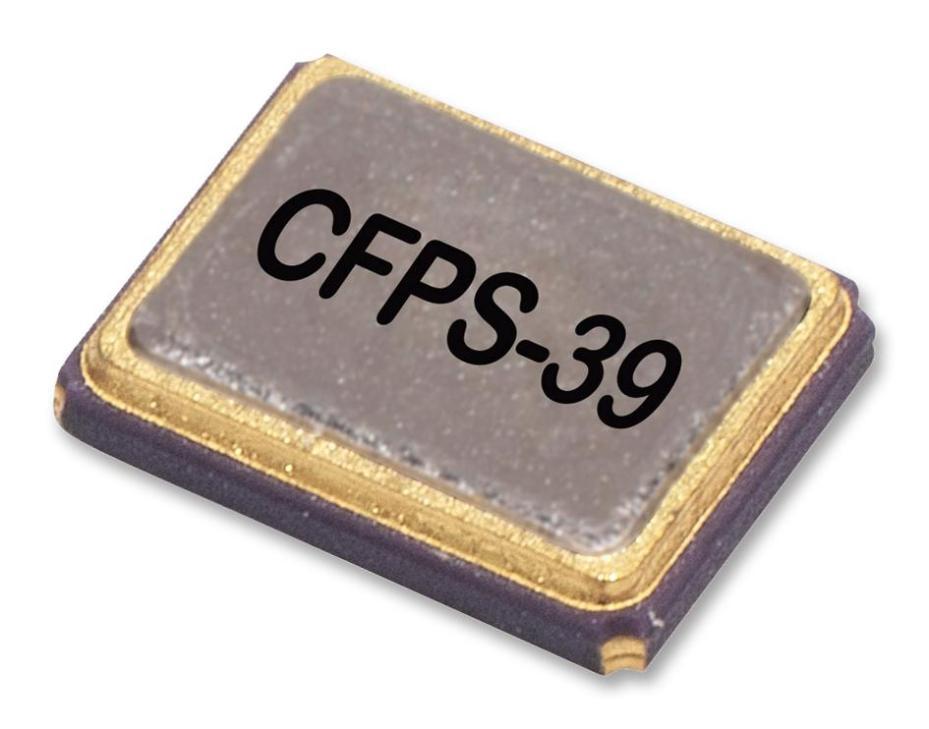

The LFSPXO025165 is a 3.2 x 2.5mm SMD Crystal Oscillator with seam sealed metal lid, hermetically sealed ceramic package. Frequency range of 2 to 50MHz and frequency tolerance at ±50ppm.
Features
- Ageing ±3ppm per year (maximum)
- CMOS output
- 3.3V Supply voltage
- 5ns Rise and fall time
| Specifications | |
|---|---|
| Frequency Nom | 25MHz |
| Frequency Stability + / - | 50ppm |
| Oscillator Case | SMD, 3.2mm x 2.5mm |
| Supply Voltage Nom | 3.3V |
| Product Range | CFPS-39 Series |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Oscillator Output Compatibility | CMOS |
| Country of Origin: | Japan |
