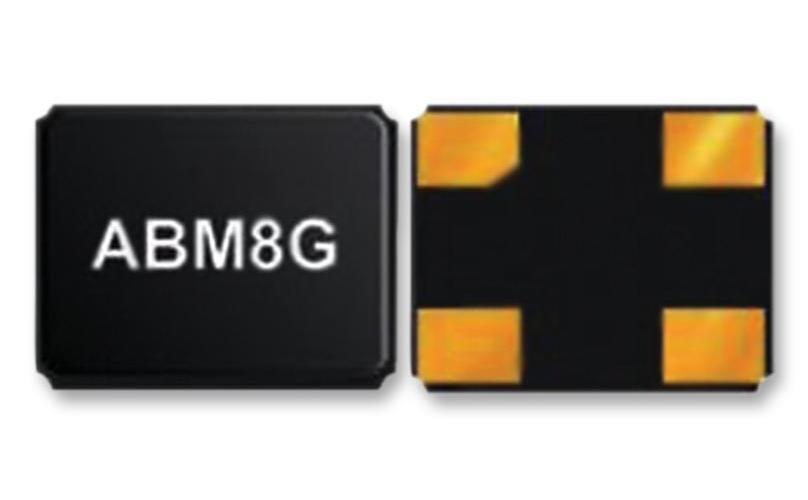

25MHz Crystal, SMD, 3.2mm x 2.5mm, 30ppm, 18 pF - ABM8G-25.000MHZ-18-D2Y-T
25MHz Crystal, SMD, 3.2mm x 2.5mm, 30ppm, 18 pF - ABM8G-25.000MHZ-18-D2Y-T
Regular price
£1.89 GBP
Regular price
Sale price
£1.89 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The ABM8G-25.000MHZ-18-D2Y-T is a 3.2 x 2.5 x 1.0mm Ultra Miniature Ceramic Glass Sealed SMD Crystal low in height and glass sealed package assures high reliability and temperature, tight tolerance and stability. Suitable for high density applications.
Features
- Ageing ±3ppm per year (maximum)
- 500MR Insulation resistance
- Fundamental mode
- IR reflow capable
| Specifications | |
|---|---|
| Frequency Nom | 25MHz |
| Crystal Case | SMD, 3.2mm x 2.5mm |
| Frequency Stability + / - | 30ppm |
| Load Capacitance | 18pF |
| Frequency Tolerance + / - | 20ppm |
| Product Range | ABM8G Series |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Country of Origin: | Taiwan |
