25MHz Crystal, SMD, 3.2mm x 2.5mm, 30ppm, 18pF - LFXTAL055299
25MHz Crystal, SMD, 3.2mm x 2.5mm, 30ppm, 18pF - LFXTAL055299
Regular price
£2.09 GBP
Regular price
Sale price
£2.09 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

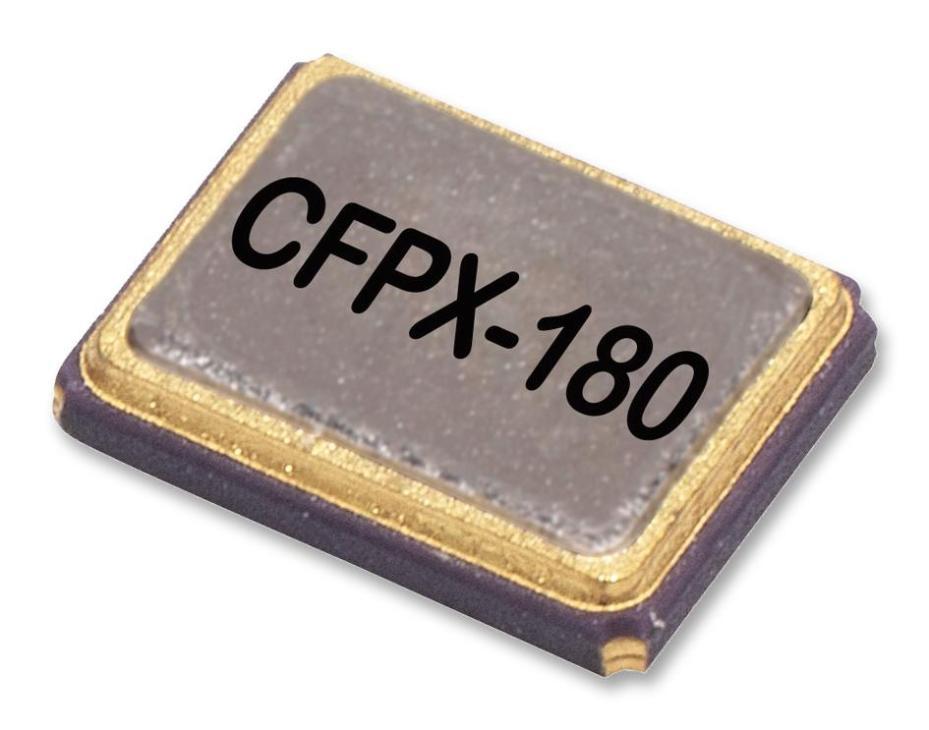

The LFXTAL055299 is a 3.2 x 2.5mm surface-mount Crystal with vibration 4hrs in 3 mutually perpendicular planes. The CFPX-180 series crystal meets MIL-STD-202F standards for shock and vibration.
Features
- Fundamental overtone order
- 100R Maximum equivalent series resistance
- 7pF Maximum shunt capacitance
- 100μW Maximum drive level
| Specifications | |
|---|---|
| Frequency Nom | 25MHz |
| Crystal Case | SMD, 3.2mm x 2.5mm |
| Frequency Stability + / - | 30ppm |
| Load Capacitance | 18pF |
| Frequency Tolerance + / - | 20ppm |
| Product Range | CFPX-180 Series |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Country of Origin: | Taiwan |
