3 Conduct Ground Terminal Block, 35mm DIN Rail, Cage Clamp, 28AWG to 12AWG - 280-687
3 Conduct Ground Terminal Block, 35mm DIN Rail, Cage Clamp, 28AWG to 12AWG - 280-687
Regular price
£5.49 GBP
Regular price
Sale price
£5.49 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

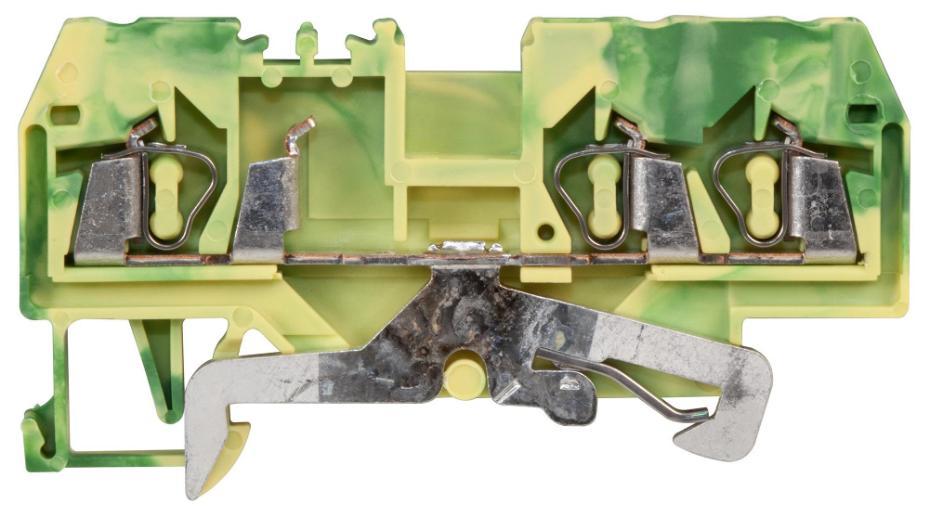

The 280-687 is a 3-conductor green-yellow Ground Terminal Block with centre marking and front-entry wiring. This terminal block has polyamide 6.6 insulator and suitable for DIN 35 rail mounting. It accepts 28 to 12AWG wire size.
Features
- Cage Clamp® connection method
- Horizontal design
- UL94V-0 Flammability rating
| Specifications | |
|---|---|
| No. of Positions | 3Ways |
| Wire Size AWG Min | 28AWG |
| Wire Size AWG Max | 12AWG |
| Conductor Area CSA | 2.5mm2 |
| Wire Connection Method | Clamp |
| Rated Current | 24A |
| Rated Voltage | 800V |
| No. of Levels | 1 |
| Product Range | 280 |
| Country of Origin: | Germany |
