3 Conductor Ground Terminal Block, 35mm DIN Rail, Cage Clamp, 28AWG to 12AWG - 280-637
3 Conductor Ground Terminal Block, 35mm DIN Rail, Cage Clamp, 28AWG to 12AWG - 280-637
Regular price
£5.59 GBP
Regular price
Sale price
£5.59 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

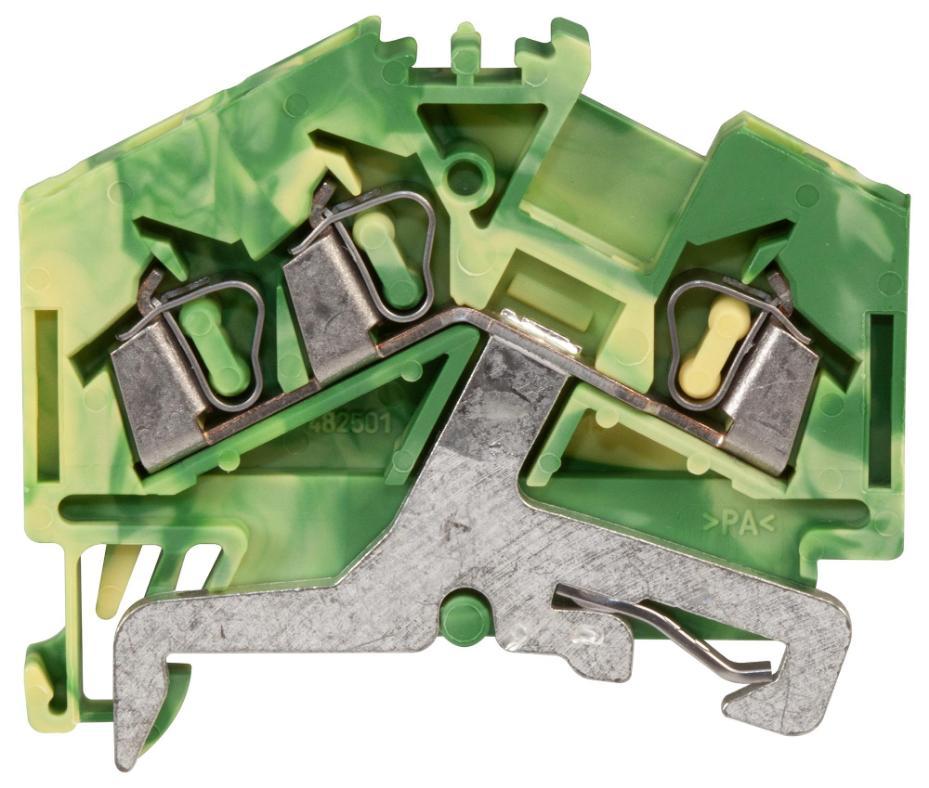

The 280-637 is a 3-position 1-level ground DIN rail Terminal Block with PA 6.6 (polyamide 6.6) insulator and green/yellow color. 2.5mm2 cross-section, front-entry wiring, center marking level, angled design, clamp wire connection method and 28 to 12AWG wire size.
Features
- UL94V-0 Flammability rating
| Specifications | |
|---|---|
| No. of Positions | 3Ways |
| Wire Size AWG Min | 28AWG |
| Wire Size AWG Max | 12AWG |
| Conductor Area CSA | 2.5mm2 |
| Wire Connection Method | Clamp |
| Rated Current | 24A |
| Rated Voltage | 800V |
| No. of Levels | 1 |
| Product Range | 280 |
| Country of Origin: | Germany |
