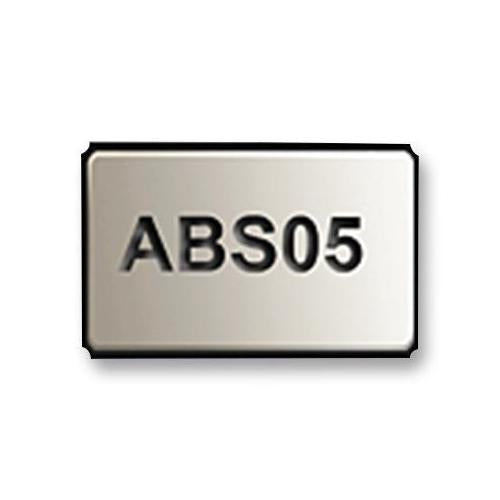

32.768kHz Crystal, SMD, 1.6mm x 1mm, 12.5pF, 20ppm - ABS05-32.768KHZ-T
32.768kHz Crystal, SMD, 1.6mm x 1mm, 12.5pF, 20ppm - ABS05-32.768KHZ-T
Regular price
£2.29 GBP
Regular price
Sale price
£2.29 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The ABS05 series SMD low profile Crystal Oscillator works at a frequency of 32.768kHz. It is suitable for use in smart display credit cards, wide range in communication and measuring equipment, wireless communications, PDA and palm pilot applications.
Features
- Smallest 32.768kHz package available
- 0.5mm Height ideal for high density circuit boards
- Ceramic package offers excellent environmental and heat resistance
- Hermetically sealed
| Specifications | |
|---|---|
| Frequency Nom | 32.768kHz |
| Crystal Case | SMD, 1.6mm x 1mm |
| Load Capacitance | 12.5pF |
| Frequency Tolerance + / - | 20ppm |
| Product Range | ABS05 Series |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Country of Origin: | Singapore |
