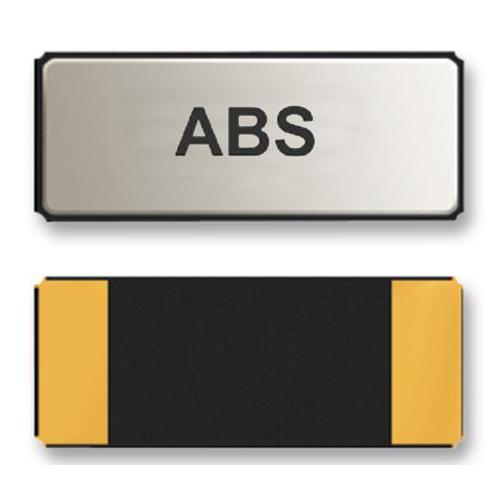

32.768MHz Crystal, SMD, 3.2mm x 1.5mm, 6pF, 20ppm - ABS07-120-32.768KHZ-T
32.768MHz Crystal, SMD, 3.2mm x 1.5mm, 6pF, 20ppm - ABS07-120-32.768KHZ-T
Regular price
£2.49 GBP
Regular price
Sale price
£2.49 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The ABS07-120-32.768KHZ-T is a 3.2 x 1.5 x 0.9mm Tuning Fork Crystal with hermetically sealed and not moisture sensitive, load capacitance is of 6pF. Seam sealed ceramic package offers excellent environmental & heat resistance and extended industrial temperature range.
Features
- Ageing ±3ppm per year (maximum)
- 500MR Insulation resistance
- AT-cut Tuning fork
- 0.9mm Height ideal for high density circuit boards
- Guaranteed ESR of 60kR maximum for low power designs
| Specifications | |
|---|---|
| Frequency Nom | 32.768kHz |
| Crystal Case | SMD, 3.2mm x 1.5mm |
| Load Capacitance | 6pF |
| Frequency Tolerance + / - | 20ppm |
| Product Range | ABS07 Low ESR Series |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
| Country of Origin: | Taiwan |
