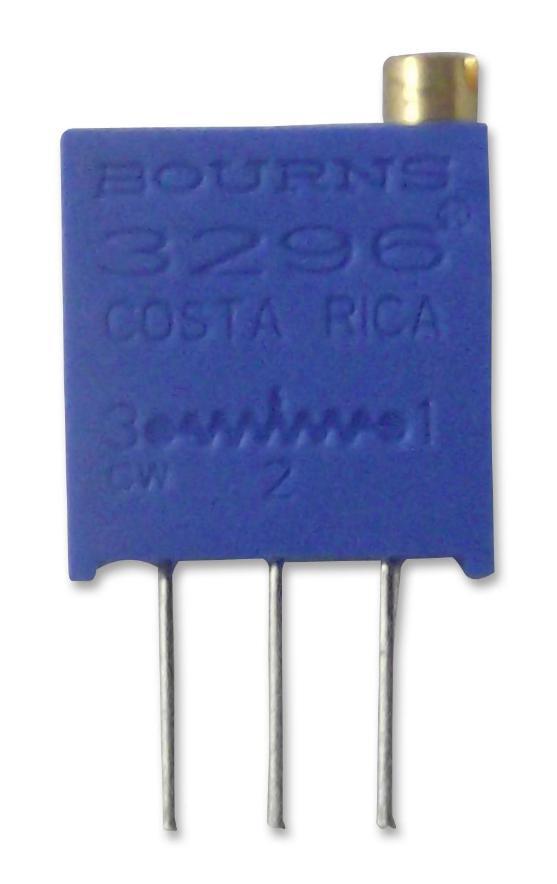

3296W-1-103LF Bourns Pot,Trimmer, 10K, 25Turn, 10%
3296W-1-103LF Bourns Pot,Trimmer, 10K, 25Turn, 10%
Regular price
£3.59 GBP
Regular price
Sale price
£3.59 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
The Trimpot 3296 series from Bourns are cermet, through hole trimming potentiometers. These potentiometers are multiturn which performs a variety of circuit adjustments in all types of electronic equipment. Typical applications are measuring linear distance, angle or rotation in production equipments.
Product Features
- 3/8inch square potentiometer
- Side or top adjustment with lead screw
- Sealing is IP65 rated
- 25 turns and rotational life of 200 cycles
- Resistance value ranges from 10 ohm to 2Mohm
- ±10% tolerance
- Temperature coefficient is ±100ppm/°C
- Operating temperature range -55°C to +125°C
- Power rating is 0.5W
- 5 terminal styles, chevron seal design
Product Details
| No. of Turns: | 25 |
| Potentiometer Mounting: | Through Hole |
| Power Rating: | 500mW |
| Product Range: | Trimpot 3296 Series |
| Resistance Tolerance: | ± 10% |
| Temperature Coefficient: | ± 100ppm/°C |
| Track Resistance: | 10kohm |
