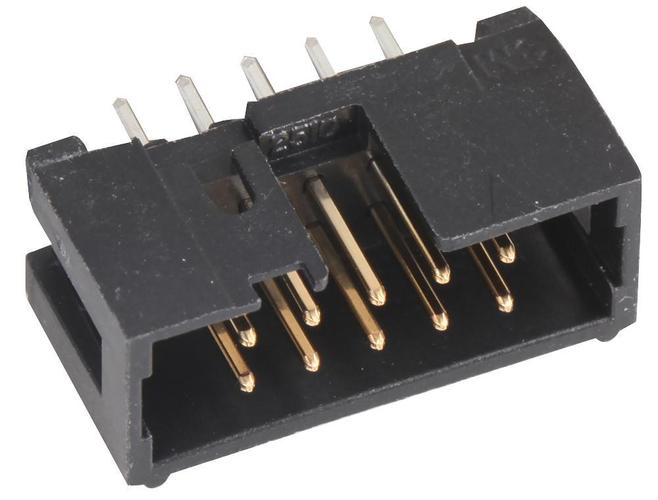

3m - N2510-6002RB - 2.54mm Header, Straight, 10 Way
3m - N2510-6002RB - 2.54mm Header, Straight, 10 Way
Regular price
£3.19 GBP
Regular price
Sale price
£3.19 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The N2510-6002RB is a 10-way 0.100 x 0.100-inch 4-wall Straight Header for 0.062-inch thick board tail, with gold-plated copper alloy contacts and through hole termination. This 2500 series low profile header is a glass filled polyester (PCT) insulated, center slot polarization prevents mis-insertions and reduces insertion time, suitable for reflow soldering using paste in hole techniques.
Product Info
- Black colour high temperature glass filled polyester PCT insulator
- Copper alloy with gold plating contacts
- Temperature rating from -55°C to 105°C
- Withstanding Voltage: 1000V
- Current Rating:
- 5A, 1 Contact Powered, 3A, 6 Contacts Powered, 1.75A, All Contacts Powered
| Details | |
|---|---|
| Product Range: | 2500 Series |
| No. of Contacts: | 10Contacts |
| Gender: | Header |
| Pitch Spacing: | 2.54mm |
| Contact Termination Type: | Through Hole |
| No. of Rows: | 2Rows |
| Contact Plating: | Gold Plated Contacts |
| Contact Material: | Copper |
| Country of Origin: | United States |
