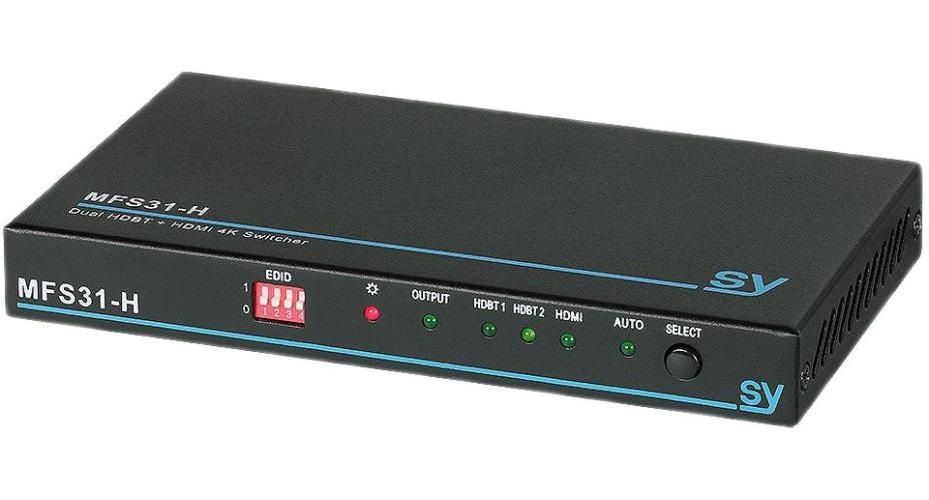

3x1 HDBT/HMDI Multi-Format Switch 4K - SY-MFS31-H
3x1 HDBT/HMDI Multi-Format Switch 4K - SY-MFS31-H
Regular price
£470.79 GBP
Regular price
Sale price
£470.79 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The SY-MFS31-H is a multi-format 3x input switching device, with 2x HDBaseT inputs, 1x HDMI input and 1x HDMI output. Remote SY HDBaseT transmitters can be connected and powered from the 2x HDBaseT inputs allowing for video reception from up to 70m. The unit is packed with extra tools and features, such as Auto or Manual switching mode, 4Kscaler, test pattern generator audio de-embedder, EDID management, temperature control, diagnostics and more. It is ideal for use in all commercial applications including digital signage, education, office displays, meeting rooms, and home cinema.
Features
- Inputs: 2x iPOC HDBaseT (HDMI 1.4), 1x HDMI 2.0
- Outputs: 1x HDMI 2.0
- Auto or Manual switching
- Colour space (RGB) & resolution down scaling
- De-embedded audio
- EDID Management
- HDCP control, bi-directional RS232 control & test pattern generator
- Full on-board diagnostics
- Temperature safety shutdown
- Bandwidth: 18Gbps max.
- HDBaseT transmission distance: Up to 70m at 1080p and 40m at 4K 4:4:4 30Hz (or 4K 4:2:0 60Hz), using Cat5e/6/7
- Operates all VESA resolutions up to 4096x2160p, all 3D formats, and all PC resolutions up to 1920x1200p
- Colour depth: 8/10/12-bit
- Power supply: 48V DC 0.5A (2 Pin Phoenix)
- Dimensions (HxWxD): 20x163x90mm
- Weight: 0.5kg
| Specifications | |
|---|---|
| Product Range | SY HDBT/HDMI Switches |
| Product Contents: | 1x SY-MFS31H unit, 2x 3 pin female captive screw connector, 1x PSU, 1x User Manual |
| Country of Origin: | China |
