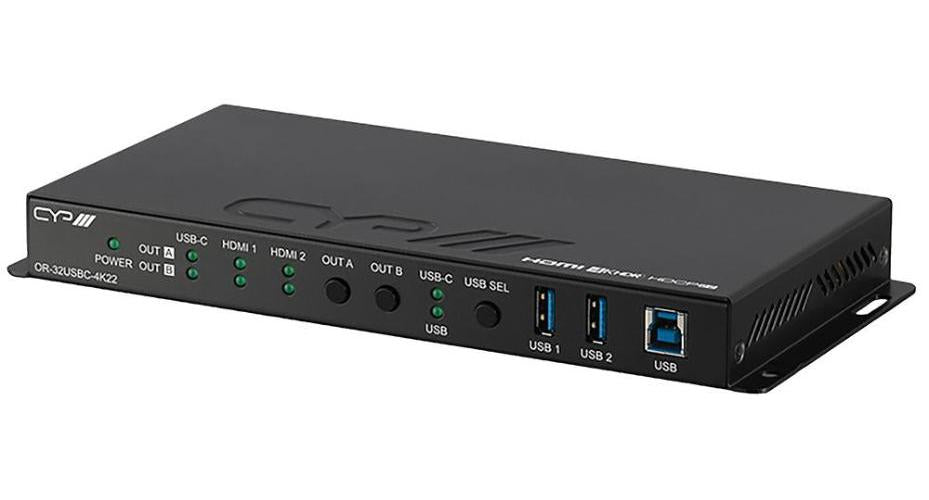

3x2 USBC/HDMI Matrix with USB Ethernet Hub - OR-32USBC-4K22

3x2 USBC/HDMI Matrix with USB Ethernet Hub - OR-32USBC-4K22

Regular price £546.99 GBP
Regular price Sale price £546.99 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

The OR-32USBC-4K22 matrix switch is designed for use in environments needing a wide range of flexibility when it comes to inputs, outputs and control. The 2x most common video input interfaces (HDMI, USB-C) are included along with a pair of HDMI outputs providing the ultimate in source compatibility and flexibility. This unit is HDCP2.2 compliant and supports resolutions up to 4K at 60Hz and HDMI output A supports 4K downscaling to 1080p. The included USB-C input runs on the USB3.0 specification and supports AV, device charging andnetwork connection. It is ideal for use in meeting rooms, classrooms, and audio integration with USB expansion.

Features

  • Supports pass-through of 8x channel LPCM, bitstream & HD bitstream audio formats
  • Supports 4K HDR formats by HDR10, HLG and Dolby Vision
  • Auto-switch functionality with a "last memory" feature
  • Basic signal event automation (via RS-232, IP or CEC)
  • Inputs:
  • - 2x HDMI Uncompressed AV and Data
  • - 2x USB-A data
  • - 1x Phoenix (4 pin)
  • - 1x RJ45 LAN
  • - 1x USB-C
  • Outputs:
  • - 2x HDMI Uncompressed AV and Data
  • - 1x USB-B 3.0
  • - 1x 3.5mm Stereo jack
  • - 1x Phoenix (4 pin)
  • Power supply: 24V DC, 5A
  • Dimensions (HxWxD): 25x231x108mm
  • Weight: 750g

Specifications
Product Range CYP USBC/HDMI Matrixes
Country of Origin: Taiwan

EAN: 5060067156138
Manufacturer Part Number:
