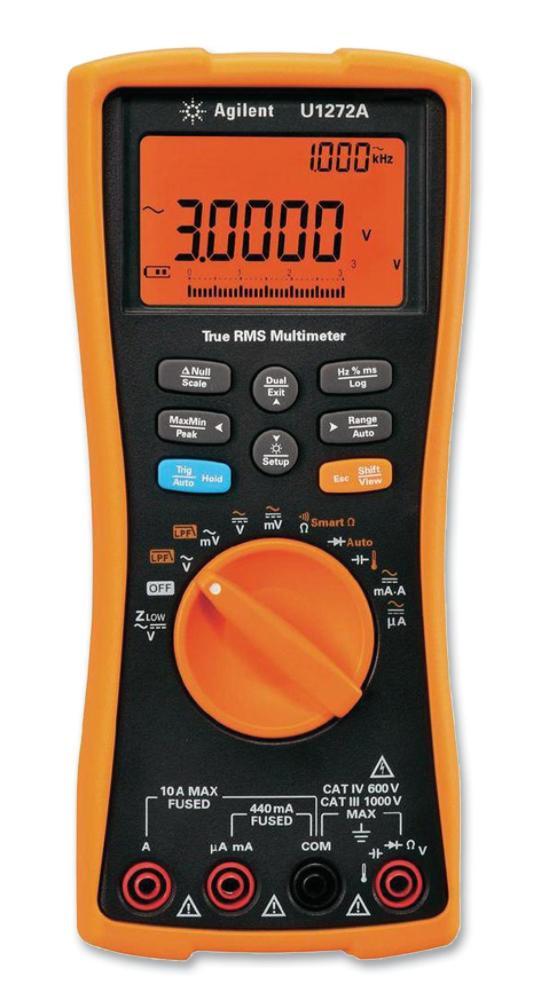

4.5 Digit Handheld Digital Multimeter - U1272A
4.5 Digit Handheld Digital Multimeter - U1272A
Regular price
£818.29 GBP
Regular price
Sale price
£818.29 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
U1270 Series handheld digital multimeter is capable of operating in winter weather conditions down to -40°C temperature enabling you to achieve accurate and immediate results without the need to warm up in advance.
Features
- OLED display with 2000:1 contrast ratio and 160 degree viewing angle
- 30,000 counts resolution
- Measure up to 1000 V AC and DC
- Measure up to 10 A (20 A for 30 s)
- Resistance, diode test, temperature, capacitance
- Low impedance mode and Low Pass Filter
- Operating temperature range -40°C to 55°C
- Up to 3000 m operating altitude
- Data logging to instrument and PC
- Water and dust resistance (IP54)
- CAT III 1000 V / CAT IV 600 V safety rating
- Bluetooth connectivity (optional U1177A Bluetooth adaptor required)
| Specifications | |
|---|---|
| DMM Functions | AC/DC Current, AC/DC Voltage, Capacitance, Continuity, Diode, Frequency, Resistance, Temperature |
| No. of Digits | 4.5 |
| DMM Response Type | True RMS |
| Display Count | 30000 |
| Range Selection | Auto, Manual |
| Voltage Measure DC Max | 1kV |
| Voltage Measure AC Max | 1kV |
| Current Measure DC Max | 10A |
| Current Measure AC Max | 10A |
| Resistance Measure Max | 0.3Gohm |
| Manufacturer Warranty | 3 Years |
| Product Range | U1270 Series |
| Product Contents: | Standard test leads, test probes with 4-mm tips, K-type thermocouple and adapter, 4x AAA alkaline batteries , Certificate of Calibration, UK 6 (test report), Quick Start Guide |
| Important Product Info: | In addition, we offer calibration services for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration service page for more details. |
| Country of Origin: | Malaysia |
