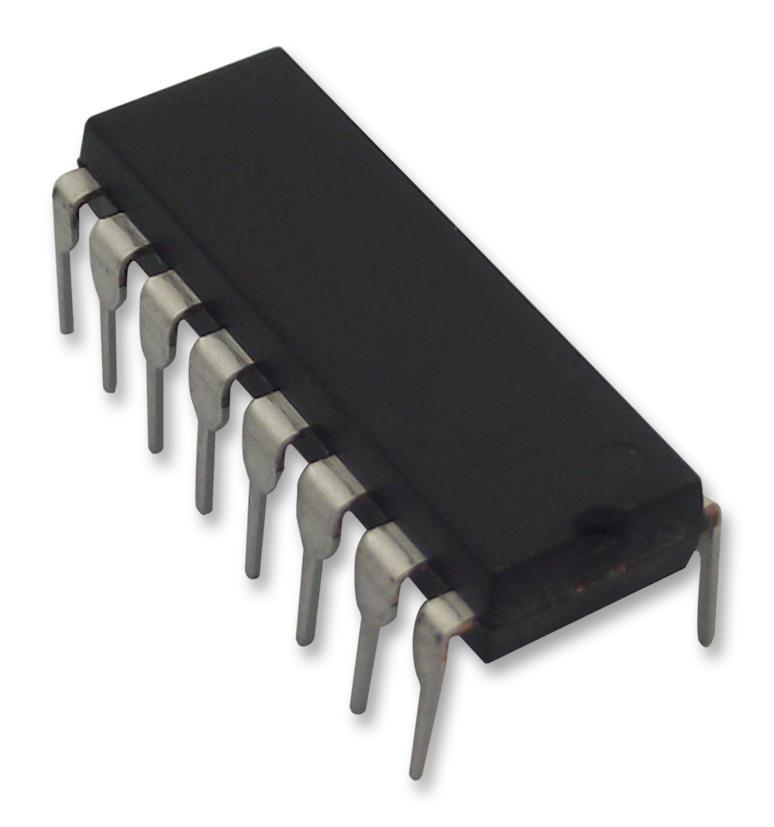

4 Bit Bistable Latch, 74LS75, D Type, Differential, 15ns, 8mA, DIP - SN74LS75N
4 Bit Bistable Latch, 74LS75, D Type, Differential, 15ns, 8mA, DIP - SN74LS75N
Regular price
£3.89 GBP
Regular price
Sale price
£3.89 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The SN74LS75N is a quad Bistable Latch with LS technology ideally suited for use as temporary storage for binary information between processing units and input/output or indicator units. Information present at a data (D) input is transferred to the Q-output when the enable (C) is high and the Q-output will follow the data input as long as the enable remains high. When the enable goes low, the information is retained at the Q-output until the enable is permitted to go high.
Features
- TTL input and output
| Specifications | |
|---|---|
| Logic Family / Base Number | 74LS75 |
| Latch Type | D Type Bistable |
| IC Output Type | Differential |
| Propagation Delay | 15ns |
| Output Current | 8mA |
| Logic Case Style | DIP |
| No. of Pins | 16Pins |
| Supply Voltage Min | 4.75V |
| Supply Voltage Max | 5.25V |
| No. of Bits | 4bit |
| Logic IC Family | 74LS |
| Logic IC Base Number | 7475 |
| Operating Temperature Min | 0°C |
| Operating Temperature Max | 70°C |
| Country of Origin: | United States |
