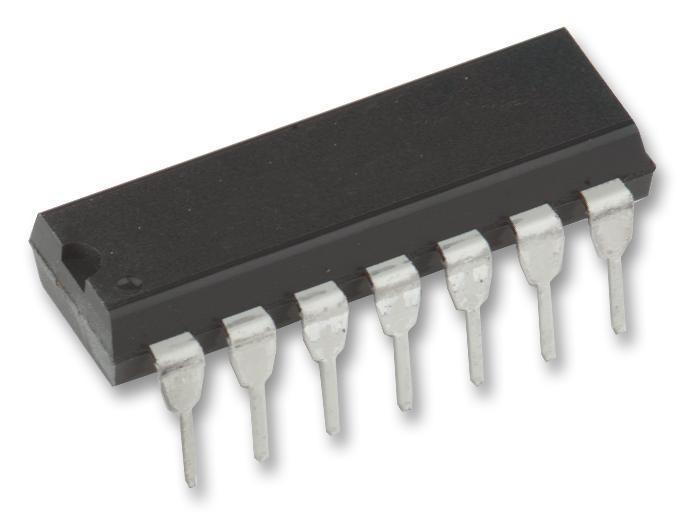

4 Channel, 2 Input, 4.75V to 5.25V Bipolar NAND Gates - SN7400N
4 Channel, 2 Input, 4.75V to 5.25V Bipolar NAND Gates - SN7400N
Regular price
£3.99 GBP
Regular price
Sale price
£3.99 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The SN7400N is a quad two input positive NAND gate in 8 pin DIP package. This device performs boolean function in positive logic.
Features
- Supply voltage range from 4.75V to 5.25V
- Operating temperature range 0°C to 70°C
- TTL input level
| Specifications | |
|---|---|
| Logic Function | NAND Gate |
| No. of Elements | Quad |
| No. of Inputs | 2Inputs |
| No. of Pins | 14Pins |
| Logic Case Style | DIP |
| Product Range | 7400 |
| Logic IC Family | 7400 |
| Supply Voltage Min | 4.75V |
| Supply Voltage Max | 5.25V |
| Schmitt Trigger Input | Without Schmitt Trigger Input |
| Output Current | 16mA |
| Operating Temperature Min | 0°C |
| Operating Temperature Max | 70°C |
| Country of Origin: | Malaysia |
