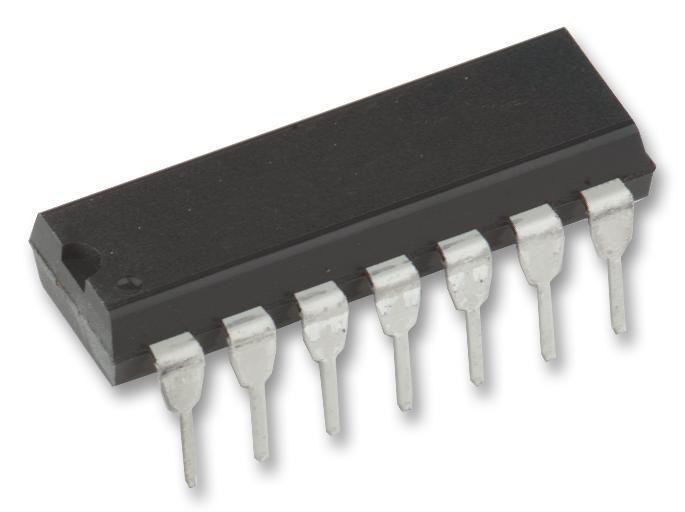

4 Channel, 4 Input, 3V to 18V XOR (exclusive OR) Gate, 6.8mA, 3V to 18V, DIP 14 - CD4030BE

4 Channel, 4 Input, 3V to 18V XOR (exclusive OR) Gate, 6.8mA, 3V to 18V, DIP 14 - CD4030BE

£2.19 GBP
£2.19 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

The CD4030BE is a CMOS quad Exclusive-OR Gate consist of four independent circuits. The device provides the system designer with a means for direct implementation of the Exclusive-OR function. The device features standardized and symmetrical output characteristics.

Features

  • 65ns Medium-speed operation
  • 100% Tested for quiescent current at 20V
  • 5V, 10V and 15V Parametric ratings
  • 2.5V at VDD =15V Noise margin
  • Meets all requirements of JEDEC tentative standard No. 13B

Specifications
Logic Function XOR (Exclusive OR)
No. of Elements Quad
No. of Inputs 2Inputs
No. of Pins 14Pins
Logic Case Style DIP
Product Range 4030
Logic IC Family 4000B
Supply Voltage Min 3V
Supply Voltage Max 18V
Schmitt Trigger Input Without Schmitt Trigger Input
Output Current 6.8mA
Operating Temperature Min -55°C
Operating Temperature Max 125°C
Country of Origin: Malaysia

EAN:
Manufacturer Part Number:
