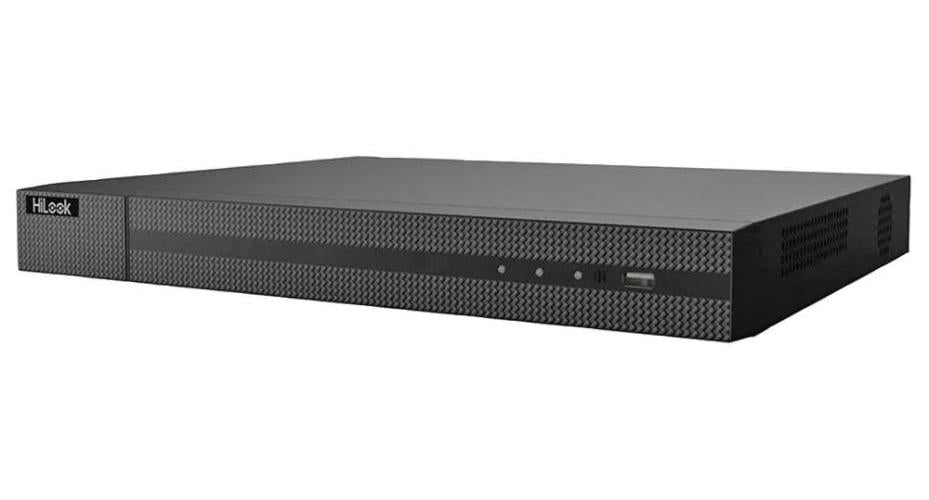

4 Channel 4K NVR, PoE, No HDD - NVR-104MH-C/4P
4 Channel 4K NVR, PoE, No HDD - NVR-104MH-C/4P
Couldn't load pickup availability
The HiLook NVR-104MH-C/4P is a 4-channel IP CCTV network video recorder that supports 4x plug-and-play IP PoE powered IP cameras at up to 8MP resolution and one 3.5" SATA HD (6TB). It supports H.265+ compression when used with compatible H.265+ IP network cameras. This reduces bandwidth and reduces the storage required enabling recorded footage footage to be stored for much longer than standard recorders. It has a 4K HDMI and 1080 VGA output that can be connected to a monitor and used to display live images, recordings or configuration menu. It can also display live images on a screen, monitor or TV from one 8MP or four 2MP cameras at a time. It has 4x PoE enabled Ethernet ports which can be used to connect up to 4x plug-and-play IP network cameras. This delivers power and video over a single cable making installation quick and simple.
Features
- HDD: 1x SATA interface - capacity up to 6TB
- Compression/Recording Standard: H.264 / H.264+ / H.265 / H.265+
- Network Access: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
- Output simultaneous HDMI/VGA x1:4K/30Hz, 1920x1080p/60Hz, 1600x1200p/60Hz, 1280x1024p/60Hz, 1280x720p/60Hz, 1024x768p/60Hz
- Network Bandwidth: 40 Mbps
- Network Input: 4 Channel IPC
- Connectable to the third-party network cameras
- Centralised management of IP cameras, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc
- Resolution: 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Smart search for the selected area in the video, and smart playback to improve the playback efficiency
- Interface: 1x Self-adaptive RJ45 10/100/1000 Mbps network interface
- VCA detection alarm is supported
- Hik-Connect for easy network management
- USB connectivity: 2x USB 2.0
- Power supply: 48V DC, consumption <= 10W (without HDD); 4x PoE port
- Work environment: -10°C to 55°C, 10% to 90% humidity
- Dimensions (HxWxD): 48x315x240mm
- Weight: 1kg (without HDD)
| Specifications | |
|---|---|
| No. of Channels | 4Channels |
| Hard Drive Capacity | 6TB |
| Product Range | HiLook NVR Units PoE |
| Plug Type | UK |
| Country of Origin: | China |
