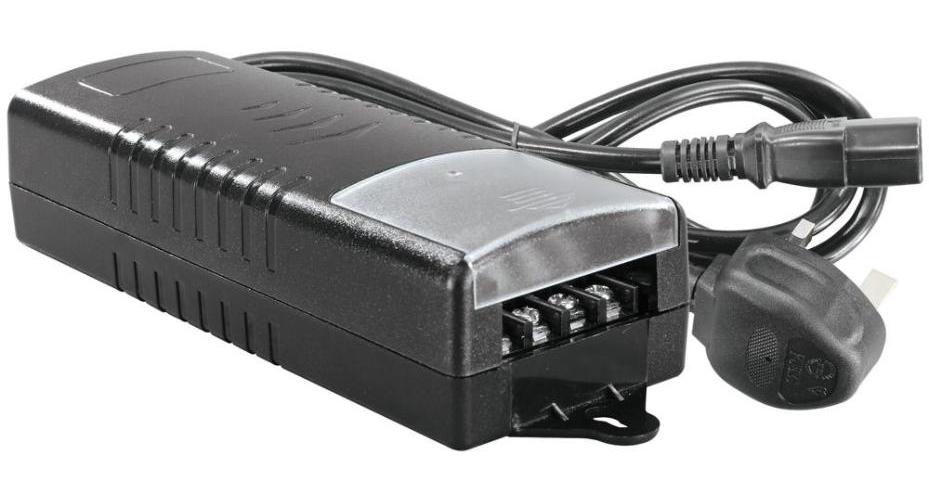

4 Channel 5A 12-14.9V DC Wall Mounted PSU - POW404
4 Channel 5A 12-14.9V DC Wall Mounted PSU - POW404
Regular price
£32.29 GBP
Regular price
Sale price
£32.29 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
This popular in-line power supply features a 4 way terminal strip connection for easy powering of 4x individual cameras and is easily wall mounted using a handy fixing lug for a tidy installation. The POW404 has 4x separate outputs to suit most 12V DC CCTV cameras. Each port has a 2A supply that will power even more demanding IR cameras and is fused to prevent over-voltage. A really useful potentiometer allows voltage adjustment from 12V DC up to 14.9V DC. This can help overcome issues with volt drop on long cable runs and more complex installations. The neat design has a kettle lead to input power and can be screwed to a wall or bolted to a rack.
Features
- Adjustable voltage 12V to 14.9V DC
- 4x Screw terminal connections outputs (5A max.)
- 2A max. per output
- Wall mountable
- Input voltage: 90V to 264V AC
- Mains connection: IEC C13 (lead supplied)
- Dimensions (HxWxD): 33x163x53mm
| Specifications | |
|---|---|
| No. of Outputs | 4Outputs |
| Output Voltage - Output 1 | 12V |
| Output Current - Output 1 | 2A |
| Output Voltage - Output 2 | 14.9V |
| Output Current - Output 2 | 2A |
| Output Current - Output 3 | 2A |
| Output Current - Output 4 | 2A |
| Input Voltage VAC | 90V AC to 264V AC |
| Power Supply Output Type | Fixed |
| Product Range | ANTIHUM In-Line PSUs |
| Country of Origin: | Great Britain |
