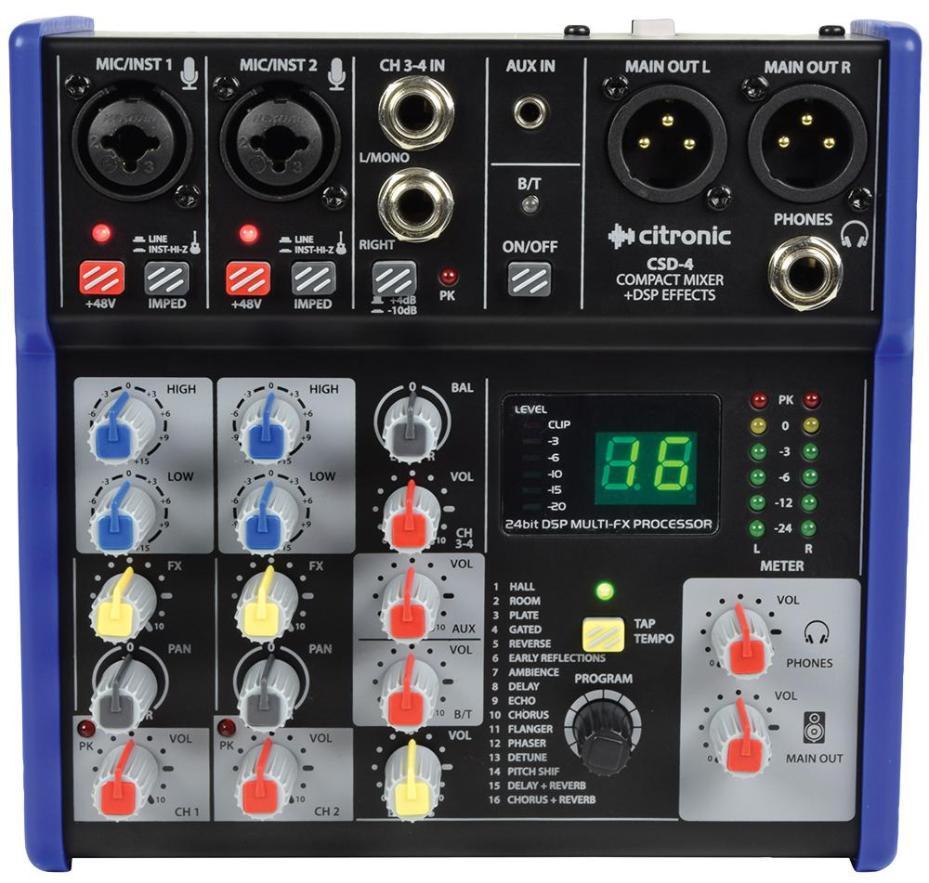

4 Channel Compact Mixing Desk with DSP/BT - CSD-4
4 Channel Compact Mixing Desk with DSP/BT - CSD-4
Regular price
£87.29 GBP
Regular price
Sale price
£87.29 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Compact format audio mixer with 2x mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR. Input channels have High/Low EQ and Pan controls. The BT pairing button enables wireless connection to a smart phone or tablet for playback. All CSD mixers feature a 16-program DSP effects section with digital reverbs, delays and modulation effects for vocals and instruments. Output is delivered on a pair of balanced XLR connectors and offers low noise operation for studio or live performances.
Features
- Inputs: 4x
- Mic Inputs: 2x mic/line inputs on combo XLR/Jack
- Stereo Inputs: 1x 6.3mm Jack
- DSP: 16x effects, 24-bit
- Blue-tooth 2.1 connection
- EIN: -102dB
- Frequency response: 20Hz to 20kHz (±0.5dB)
- THD Mic Channel: <0.03%
- Signal to Noise Ratio: 102dB
- Output: L/R balanced XLR
- EQ: Hi 12kHz, Lo 80Hz
- Power supply: 5V DC 1A (included)
- Phantom power: +48V individually switchable
- Power Requirements: 100V-240V AC
- Dimension (HxWxD): 66x171x166mm
- Weight: 920g
| Specifications | |
|---|---|
| Product Range | CITRONIC CSD Mixing Desks |
| Plug Type | UK |
| Product Contents: | mixer, power supply |
| Country of Origin: | China |
