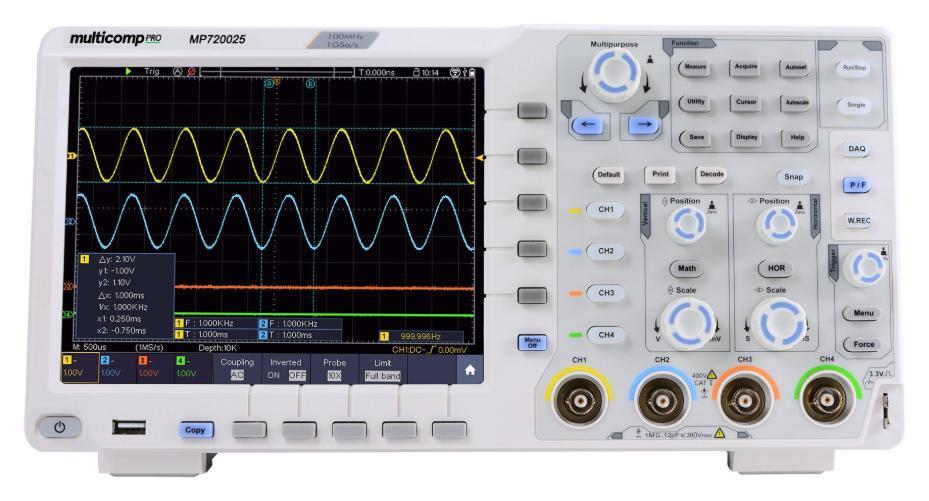

4-Channel Digital Storage Oscilloscope, 100MHz - MULTICOMP PRO
4-Channel Digital Storage Oscilloscope, 100MHz - MULTICOMP PRO
Regular price
£717.69 GBP
Regular price
Sale price
£717.69 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The Multicomp Pro MP720025 is an 8-bit, 4 channel 100MHz touchscreen digital oscillosope.Featuring built-in frequency counter and decoder, 40M record lengths with max 45,000 wfms/s waveform refresh rates, low background noise, SCPI and LabVIEW support, and multi-interface integration.
Product Info
- 8" high-resolution touch-screen LCD screen (800x600)
- 45,000 frame/sec waveform refresh rate, multi-level gray scale and colour temperature display
- Horizonal rate - 2ns/div - 1000s/div, step by 1-2-5
- Sample rate/real-time accuracy of ±2.5 ppm
- DC, AC and GND input couplings
- 1mV/div - 10V/div vertical sensitivity (at input)
- Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232 and CAN trigger types
- I2C, SPI, RS232 and CAN bus decoding
- Auto, normal and single trigger modes
- USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN and VGA communication interfaces
- Dimensions - 340 x 177 x 90mm
| Details | |
|---|---|
| Scope Channels | 4 Analogue |
| Bandwidth | 100MHz |
| Sampling Rate | 1GSPS |
| Display Memory Depth | 40 Mpts |
| Calculated Rise Time | 3.5ns |
| Scope Display Type | LCD Colour |
| Kit Contents | DSO, Power Cord, USB Cable, CD Rom, Probes, Probe Adjust Tool, Optional Acc: Soft Bag & Battery |
| Manufacturer Warranty | 1 Year |
| Plug Type | EU, UK |
| Product Contents: | Digital Storage Oscilloscope, 2x Probes, Probe Manual, Accessories Bag, USB Type B Cable, Operating Instructions, CD-ROM, UK & EU Power Cords |
| Important Product Info: | Calibration services available for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration page for more details. |
| Country of Origin: | China |
