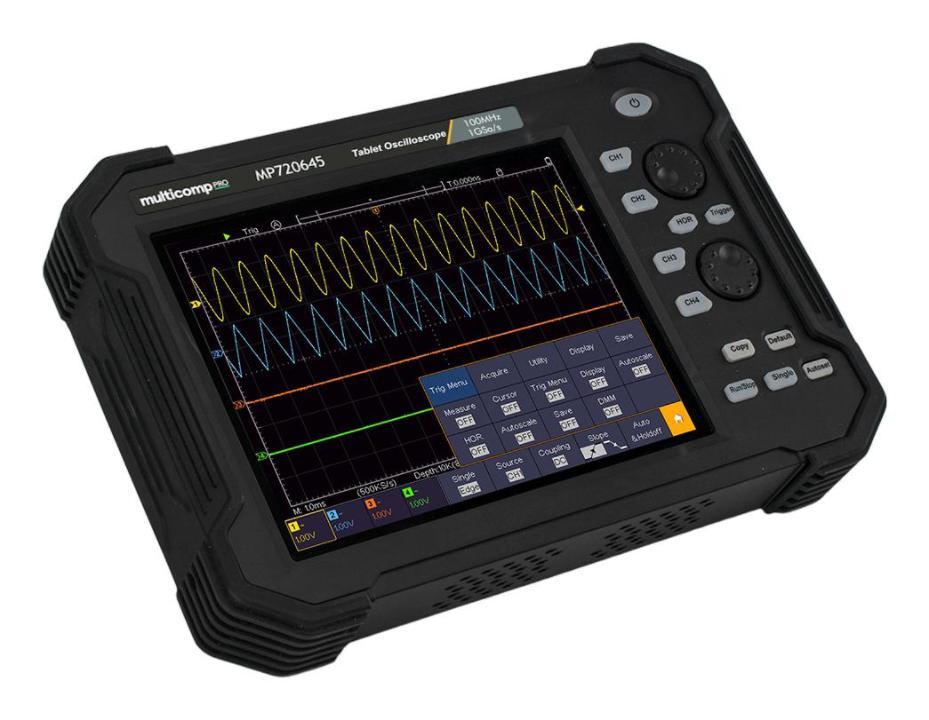

4-Channel Digital Tablet Oscilloscope, 100MHz - MP720645
4-Channel Digital Tablet Oscilloscope, 100MHz - MP720645
Regular price
£650.79 GBP
Regular price
Sale price
£650.79 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The Multicomp Pro MP720645 is 4 channel, 100MHz tablet oscilloscope. Featuring 8" (800 x 600) multi-touch LCD screen, real time sampling rate of 1GS/s, 8 bits vertical resolution (A/D) and various advanced triggering and decoding functions.
Features
- 40M memory depth, 45,000wfms/s waveform refresh rate
- Low local noise, more accurate small signal test
- Supports SCPI & LabVIEW
- Multiple communication interfaces including USB host, USB device and LAN (USBTMC supported)
- Horizontal scale (s/div): 1ns/div - 1000s/div, step by 1-2-5
- DC, AC and GND input couplings
- 1mV/div - 10V/div vertical sensitivity (at input)
- Edge, video, pulse, slope, runt, windows, timeout, nth edge, logic, I2C, SPI, RS232, CAN types
- I2C, SPI, RS232 and CAN bus decoding functions
- Auto, normal and single trigger modes
- 100 waveform storage
- USB, pass/fail, LAN communication interfaces
- 7.4V battery, 8000mAh
- Device dimension is 270mm x 191mm x 48mm
- Device weight is 1.7kg approx
| Specifications | |
|---|---|
| Product Range | Multicomp Pro Tablet Oscilloscopes |
| Scope Channels | 4 Channel |
| Bandwidth | 100MHz |
| Sampling Rate | 1GSPS |
| Display Memory Depth | 40 Mpts |
| Scope Display Type | TFT LCD Colour |
| Kit Contents | UK/EU Power Cord, Probe/USB Cable/Probe Adjust, Frame, BNC-SAM, Leads, Current Ext Module, CD/Manual |
| Manufacturer Warranty | 1 Year |
| Plug Type | EU, UK |
| Product Contents: | Tablet oscilloscope, UK/EU power cord, Probe, Probe adjust tool, Tablet frame, BNC-SAN adapter, USB cable, CD-ROM, Operating manual & standard carry bag. |
| Country of Origin: | China |
