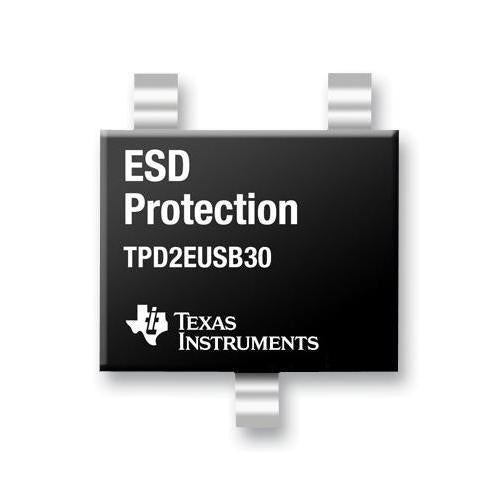

4 Channel ESD Protection for Super Speed USB 3.0 Interface, 8V, 3.6V, 45W - TPD2EUSB30ADRTR
4 Channel ESD Protection for Super Speed USB 3.0 Interface, 8V, 3.6V, 45W - TPD2EUSB30ADRTR
Regular price
£1.89 GBP
Regular price
Sale price
£1.89 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The TPD2EUSB30ADRTR is a two-channel ESD/Surge Solution for high speed and low voltage interface. It is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (contact). It also offers 5A (8/20μs) peak pulse current ratings per IEC 61000-4-5 (surge) specification. It also offers low 4.5V DC break-down voltage. The low capacitance, low break-down voltage and low dynamic resistance make the TPD2EUSB30A a superior protection device for high-speed differential IOs.
Features
- Supports USB 3.0 data rates (5Gbps)
- IEC 61000-4-2 ESD Protection (level 4 contact)
- IEC 61000-4-5 Surge protection
- Low capacitance
- 0.6R Typical dynamic resistance
- Flow-through pin mapping
- Green product and no Sb/Br
| Specifications | |
|---|---|
| Clamping Voltage Vc Max | 8V |
| Diode Case Style | SOT |
| No. of Pins | 3Pins |
| Operating Voltage | 3.6V |
| Power Dissipation Pd | 45W |
| Country of Origin: | Thailand |
