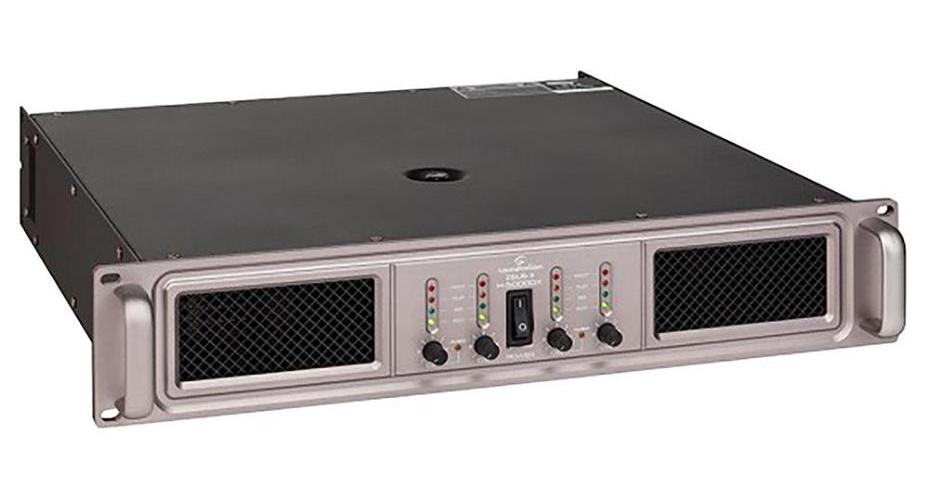

4 Channel Power Amplifier 5000W 4R/8R, 2U - ZEUS II H-5000QX
4 Channel Power Amplifier 5000W 4R/8R, 2U - ZEUS II H-5000QX
Couldn't load pickup availability
This model of ZEUS II H-QX amplifiers is ideal for professional multi-channel applications for outputs ranging from 800W to 1200W at 4R/8R per channel. It is a 4 channel Class H amplifier with excellent sound reproduction and maximum reliability. It can be used in stereo, parallel and bridged modes. Each channel integrates a crossover with low & high pass filters for use with full range systems and subwoofers, without the need for external processors. In addition to the signal limiter, the protection system includes delayed ignition, DC offset recognition, thermal protection and current limiting. The cooling system is extremely efficient and controls the speed of the fans to ensure excellent noise management.
Features
- Maximum reliability thanks to the quality of the components and the consolidated technology in class H
- Adjustable low-pass filters for each channel
- 2U 19" Design
- Output power: 4x 1200W at 4R, 4x 800W at 8R rms - Class H
- Bridged output power: 2x 2500W at 8R
- Inputs: 4x XLR
- Outputs: 4x XLR link
- Speaker outputs: 4x Speakon
- SNR: 100dB
- THD: <0.1%
- Variable speed fans for quiet and efficient cooling
- Protection system that includes signal limiting, ignition delay, DC offset recognition, thermal protection, and current limiting
- Power supply: PowerCon 220V AC, 50/60Hz
- Dimensions (HxWxD): 89x483x464mm
- Weight: 25.5kg
| Specifications | |
|---|---|
| Product Range | Soundsation Power Amps |
| Plug Type | UK |
| Country of Origin: | China |
