4 Channel UHF Wireless Microphone Receiver System 38CH - R-4 CH38
4 Channel UHF Wireless Microphone Receiver System 38CH - R-4 CH38
Couldn't load pickup availability

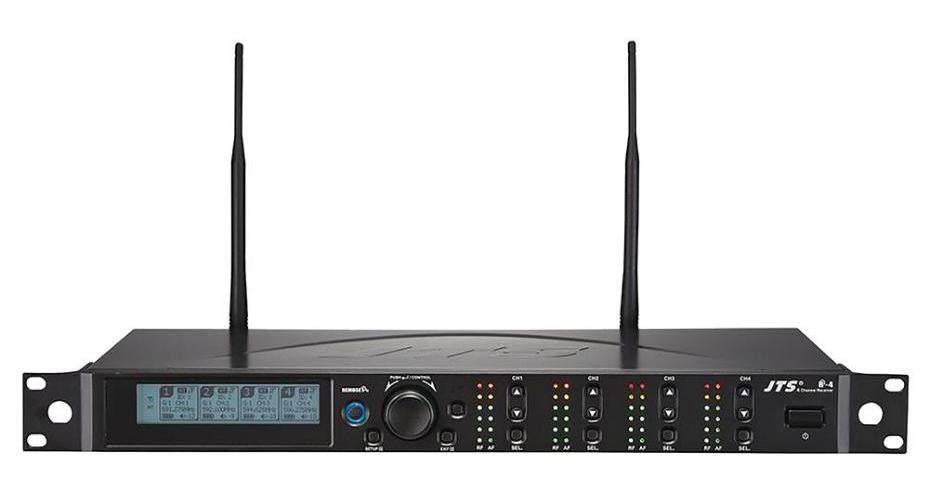

The R-4 is a 4 channel wireless UHF receiver that exhibits 3rd generation True Diversity, an advanced technology for receivers, hosting independent receiver sections each with their own integral antennas to strengthen the transmission of data. To further improve the dynamics and ensure reliability, this system features the JTS REMOSET® technology, a synchronised pairing that allows users to simultaneously adjust the transmitters via the receivers, exceptionally convenient during live shows, speeches and events, supporting the choice of attenuating microphone sensitivity live in real-time. Integrated with PLL oscillation for improved signal integrity with a handy Pilot Tone & Noise Mute Squelch. An LCD display for intuitive navigation and feedback, featuring channels, frequency, battery level, gain information and more.
Features
- 4-Way Channel
- 3rd generation of True Diversity technology
- Integrated REMOSET® (Ultrasonic frequency) for synchronised pairing
- Pilot Tone and Noise Mute Squelch
- CH38: 606.5-638MHz (licence required)
- PPL Synthesised control/Oscillation
- Frequency scan function
- Onboard features such as: Battery status, levels, frequencies, channels, RF meter and much more
- S/N ratio: >105dB
- T.H.D: 0.6% at 1kHz
- Output level: -12dB
- 4 independent XLR outputs, 1 6.3mm jack and 1 XLR for mixed outputs
- 19" 1U Rack mountable
| Specifications | |
|---|---|
| Carrier Frequency | 606.5MHz |
| Product Range | JTS Wireless Transmitter and Receiver Systems |
| Important Product Info: | CH38 |
| Country of Origin: | Taiwan |
