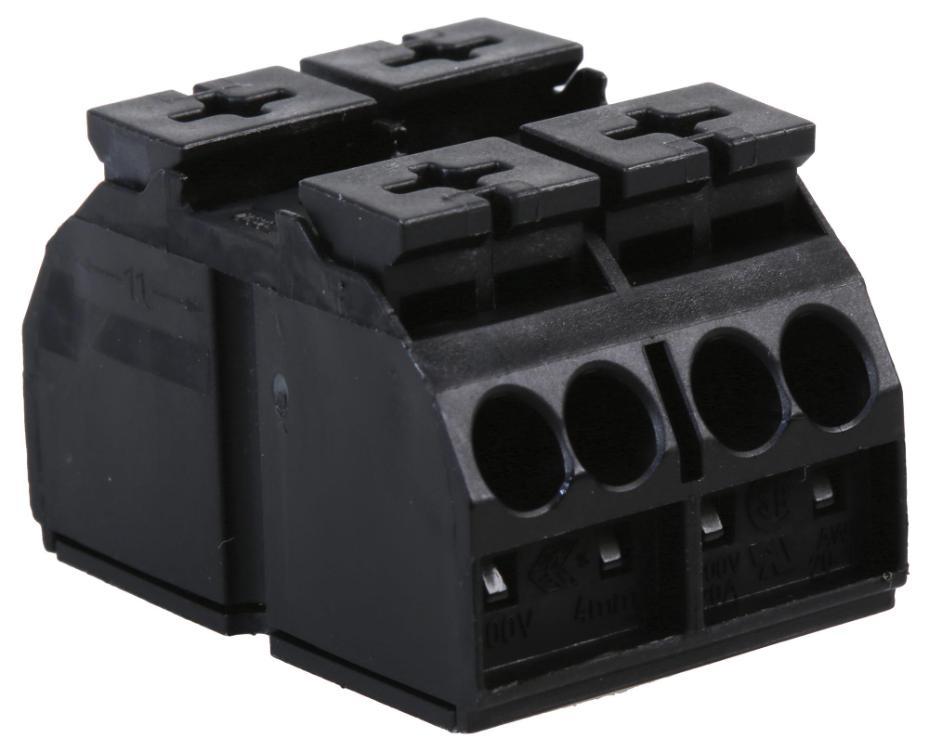

4 Conductor Chassis Mount Terminal Strip, 20AWG to 12AWG, 32A, 2 Pole - 862-552
4 Conductor Chassis Mount Terminal Strip, 20AWG to 12AWG, 32A, 2 Pole - 862-552
Regular price
£2.49 GBP
Regular price
Sale price
£2.49 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The 862-552 is a 2-pole black chassis-mount Terminal Strip with plain marking and side-entry wiring. This terminal strip is suitable for mounting via M3 screw and nut or self-tapping screw. It accepts 20 to 12AWG wire size.
Features
- Push-in Cage Clamp® connection technology
- Maximum wire 20 to 12 AWG
- Nominal voltage: 500V
- Rated current: 32A
- Pitch spacing: 12mm
- Dimensions (WxHxD): 24x22.3x35mm
| Specifications | |
|---|---|
| Pitch Spacing | 12mm |
| No. of Positions | 2Ways |
| Wire Size (AWG) | 20AWG to 12AWG |
| Wire Connection Method | Clamp |
| Rated Current | 32A |
| Rated Voltage | 500V |
| Product Range | 862-5xx Series |
| Country of Origin: | Germany |
