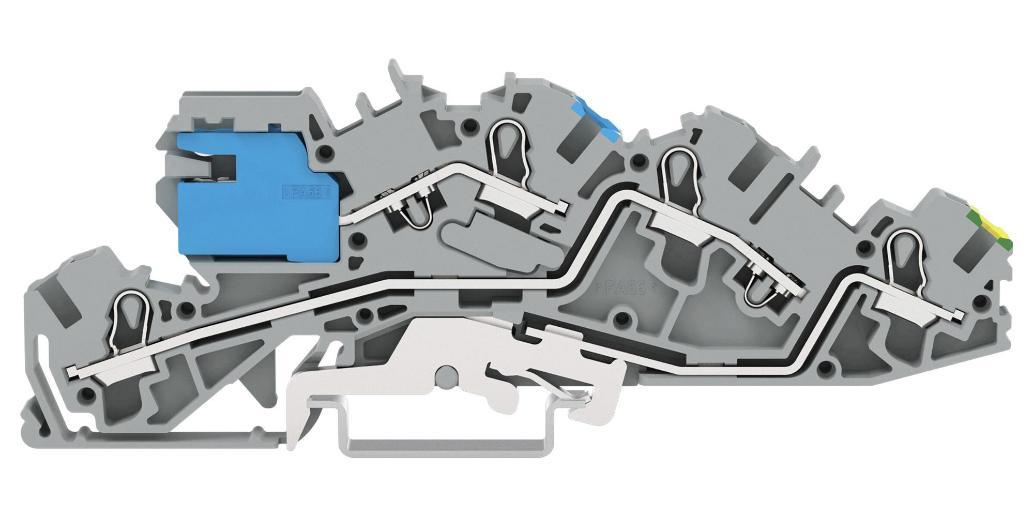

4 Conductor Multi Level Installation Terminal Block with N-Disconnect Slide Link, Push In, Cage Clamp, 35mm DIN RAil 20AWG to 10 - 2005-7641

4 Conductor Multi Level Installation Terminal Block with N-Disconnect Slide Link, Push In, Cage Clamp, 35mm DIN RAil 20AWG to 10 - 2005-7641

£6.89 GBP
£6.89 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Features

  • 4 Conductor 35mm DIN terminal block with push-in CAGE CLAMP® technology
  • N-Disconnect slide link
  • Potential marking:NT/L/PE
  • Push-in wire termination for faster installation
  • Fits cable size: 0.5mm2 - 4mm2 / 10 AWG - 20 AWG
  • Nominal cross-section: 4mm2
  • Nominal voltage: 250V
  • Rated current: 32A
  • Front entry wiring
  • Screwless Connection

Specifications
No. of Positions 4Ways
Wire Size AWG Min 20AWG
Wire Size AWG Max 10AWG
Conductor Area CSA 4mm2
Wire Connection Method Push In
Rated Current 32A
Rated Voltage 250V
No. of Levels 3
Product Range 2005-764x Series
Country of Origin: China

EAN: 4055143042239
Manufacturer Part Number:
