4 Conductor Through Terminal Block with Push Button and Test Port, 800V, 24A, 22AWG to 12AWG, Grey - 2202-1401

4 Conductor Through Terminal Block with Push Button and Test Port, 800V, 24A, 22AWG to 12AWG, Grey - 2202-1401

£2.79 GBP
£2.79 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

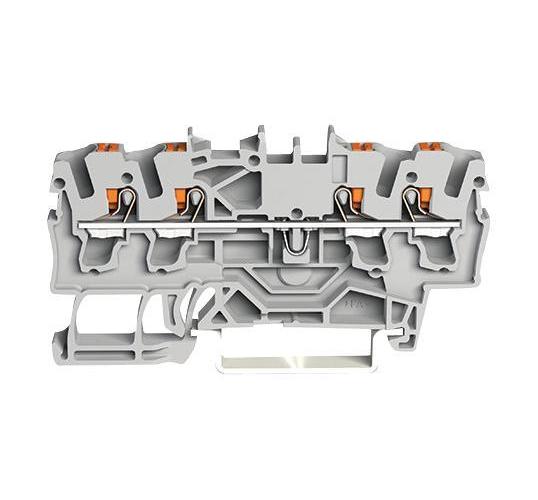

The 2202-1401 is a 4-conductor through terminal block; with push-button; 2.5 mm2; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®

Features

  • DIN 35 rail-mounted terminal block with PUSH-BUTTON CAGE CLAMP® technology
  • Significant cost savings through the reduction of panel space & faster installation
  • Push Button termination for simple faster installation
  • Fits cable of size 0.25-4mm2/ 22 to 12 AWG
  • Grey
  • Voltage rating of 800V and current of 24A
  • Top entry wiring
  • Screwless Connection

Specifications
No. of Positions 4Ways
Wire Size AWG Min 12AWG
Wire Size AWG Max 12AWG
Conductor Area CSA 2.5mm2
Wire Connection Method Clamp
Rated Current 24A
Rated Voltage 800V
No. of Levels 1
Product Range TOPJOBS 2202 Series
Country of Origin: Germany

EAN: 4055143713870
Manufacturer Part Number:
