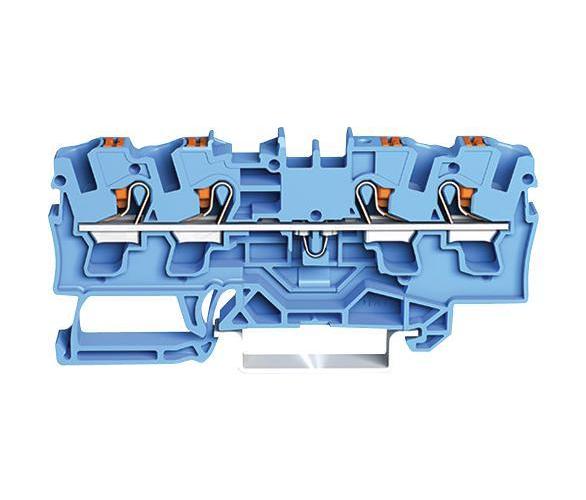

4 Conductor Through Terminal Block with Push Button and Test Port, 800V, 32A, 20AWG to 10AWG, DIN Rail 35mm, Blue - 2204-1404

4 Conductor Through Terminal Block with Push Button and Test Port, 800V, 32A, 20AWG to 10AWG, DIN Rail 35mm, Blue - 2204-1404

£3.09 GBP
£3.09 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

The 2204-1404 is a 4-conductor through terminal block; with push-button; 4 mm2; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®

Features

  • DIN 35 rail-mounted terminal block with PUSH-BUTTON CAGE CLAMP® technology
  • Significant cost savings through the reduction of panel space & faster installation
  • Push Button termination for simple faster installation
  • Fits cable of size 0.5-6mm2/ 20 to 10 AWG
  • Blue
  • Voltage rating of 800V and current of 32A
  • Top entry wiring
  • Screwless Connection

Specifications
No. of Positions 4Ways
Wire Size AWG Min 20AWG
Wire Size AWG Max 10AWG
Conductor Area CSA 4mm2
Wire Connection Method Clamp
Rated Current 32A
Rated Voltage 800V
No. of Levels 1
Product Range TOPJOBS 2204
Country of Origin: Germany

EAN: 4055143711357
Manufacturer Part Number:
