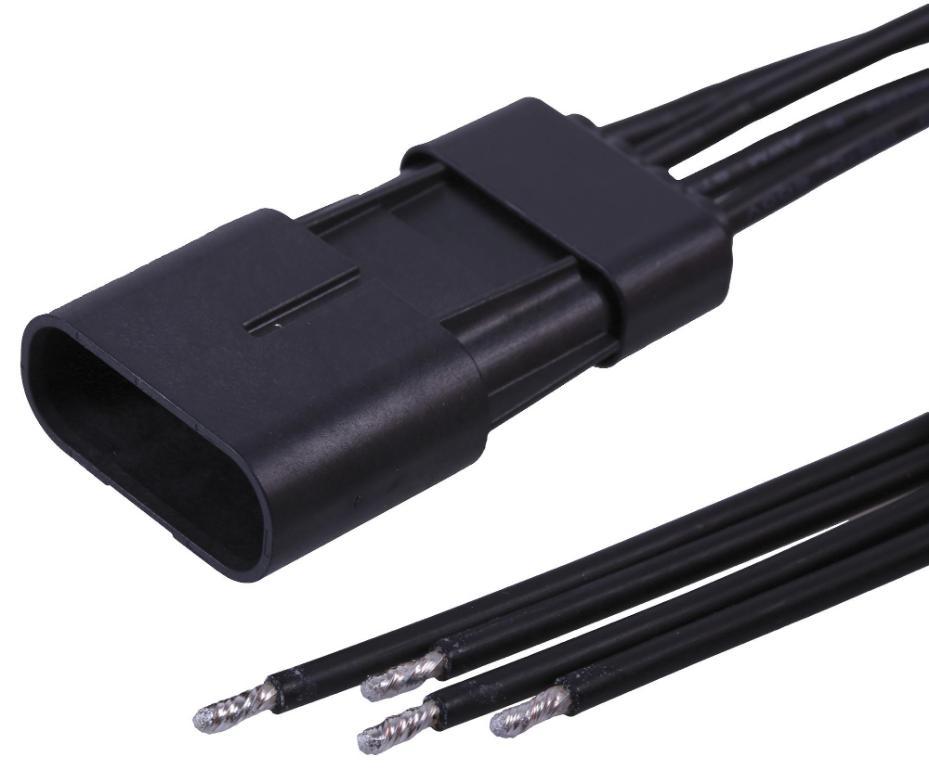

4 Pin Squba Plug to Bare End Lead, 300mm - 216623-1042
4 Pin Squba Plug to Bare End Lead, 300mm - 216623-1042
Regular price
£7.69 GBP
Regular price
Sale price
£7.69 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Off-the-Shelf Squba 3.60mm pitch sealed wire-to-wire connector system is a patent-pending design that offers an IP67 NEMA rating and carries 14.0A of current to deliver reliable power in a wide range of space constrained applications. Typical applications include consumer, commercial vehicle and industrial equipments.
Features
- 216623 series Squba 3.6 male-to-Pigtail Off-the-Shelf (OTS) cable assembly
- Wraparound insulation crimp provides security against seal punctures
- Primary lock enables 40N terminal retention, delivers a reliable connection, withstands vibration
- Seal caps protective terminal channels
- Align terminals during insertion to prevent punctures to seal during connector assembly
- Seal caps protect seals from damage during shipping, handling and use
- UL (file no E29179), CSA certified
- Nylon housing, copper alloy contact
- Maximum voltage of 600V, 25 cycles maximum durability
- Clean body terminal, avoids seal punctures
| Specifications | |
|---|---|
| Connector to Connector | Squba Plug to Free End |
| No. of Positions | 4Ways |
| Connector Pitch | 3.6mm |
| No. of Rows | 1 Row |
| Cable Length - Metric | 300mm |
| Cable Length - Imperial | 11.8" |
| Product Range | Squba OTS 216623 |
| Wire Gauge | 16AWG |
| Jacket Colour | Black |
| Country of Origin: | India |
