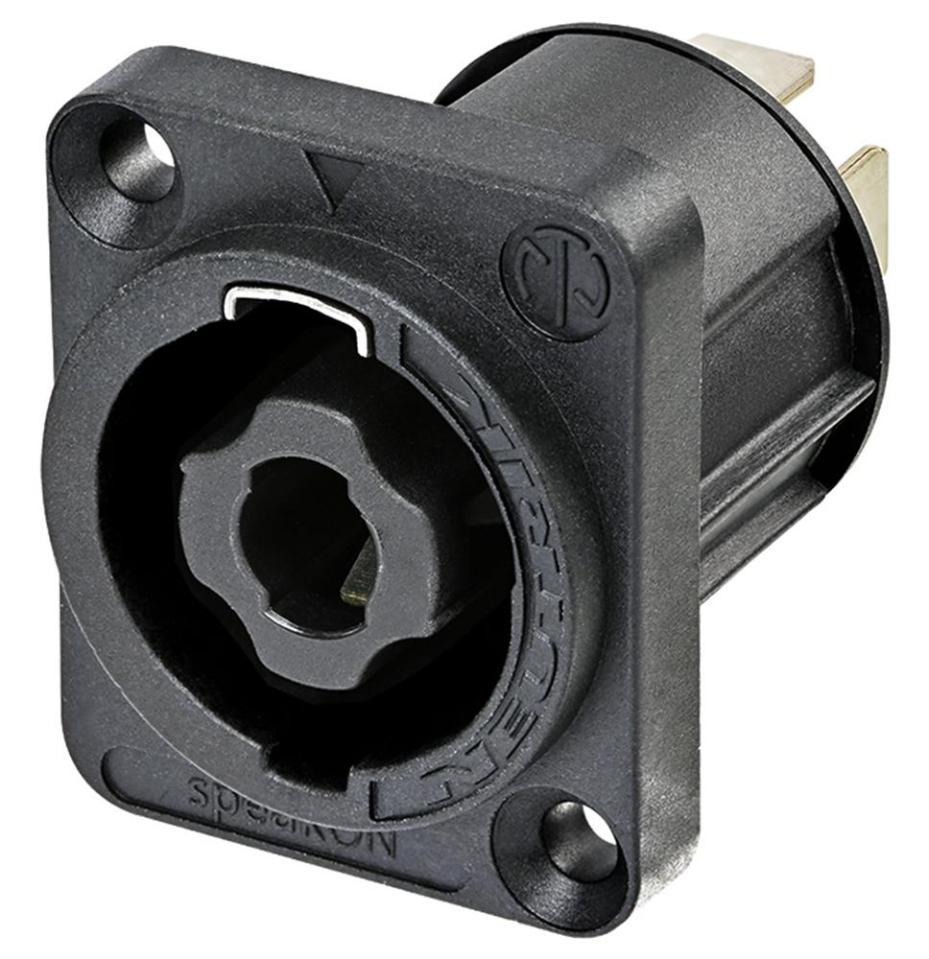

4 Pole Male Chassis Connector - NL4MPXX-UC
4 Pole Male Chassis Connector - NL4MPXX-UC
Regular price
£6.49 GBP
Regular price
Sale price
£6.49 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The NLP4MPXX-UC is a 4 Pole male chassis connector for 30A rms continuous. Black D- size flange, countersunk thru holes, 1/4" flat tabs (termination e.g. with Faston tab Tyco part # 41829). This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984. The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
Features
- IEC 61984 certified, IEC 6236/-1 compliant
- Precise keyway for secure mating with metal insert in locking area
- Glass reinforced V-0 materials - extremely robust and durable
- Airtight design - optimized for speaker applications
- Contact resistance: <= 2 mR
- Dielectric strength: 2.8 kVac
- Insulation resistance: >0.1 GR (after dampheat)
- Rated voltage: 250V AC
| Specifications | |
|---|---|
| Product Range | speakON Series |
| No. of Contacts | 4 Contact |
| Gender | Plug |
| Connector Mounting | Panel Mount |
| Contact Plating | Copper Alloy Plated Contacts |
| Connector Body Material | Nylon 6 (Polyamide 6) Body |
