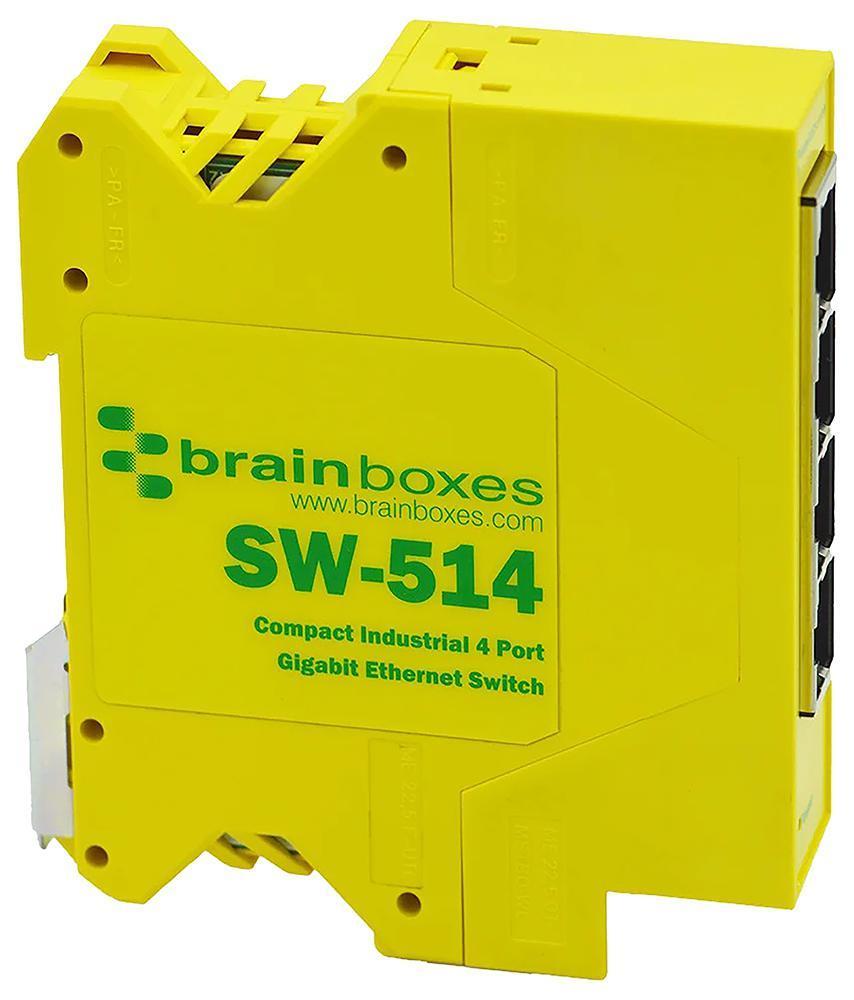

4 Port Industrial Unmanaged Gigabit Ethernet Switch, DIN Mountable - SW-514
4 Port Industrial Unmanaged Gigabit Ethernet Switch, DIN Mountable - SW-514
Regular price
£113.39 GBP
Regular price
Sale price
£113.39 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
High speed industrial 4 port Gigabit Ethernet switch with a slim profile design that takes up minimal cabinet space. The hub supports a wide power input range, making it suitable for a range of factory and vehicle applications.
Features
- Extended operating temperature range for use in harsh environments (-40°C to +80°C)
- Each Ethernet port is magnetically isolated
- Auto MDI/MDI-X crossover support on all ports
- Power consumption is optimised based on the status of the link device
- Dual redundant power input (+5V DC to +30V DC)
- Slim profile IP20 rated non-conducting polyamide case
- Integrated DIN rail mounting with ground
- Easily wireable and removable screw terminal block
- Plug and play, no software required
| Specifications | |
|---|---|
| No. of Ports | 4Ports |
| Ethernet Switch Application | Industrial |
| Ethernet Switch Type | Gigabit Ethernet |
| Ethernet Switch Mounting | DIN Rail |
| Port Types | RJ45 x 4 |
| Network Speeds | 10Mbps, 100Mbps, 1Gbps |
| Input Voltage Type | VDC |
| Product Contents: | Switch and user guide |
| Country of Origin: | Great Britain |
