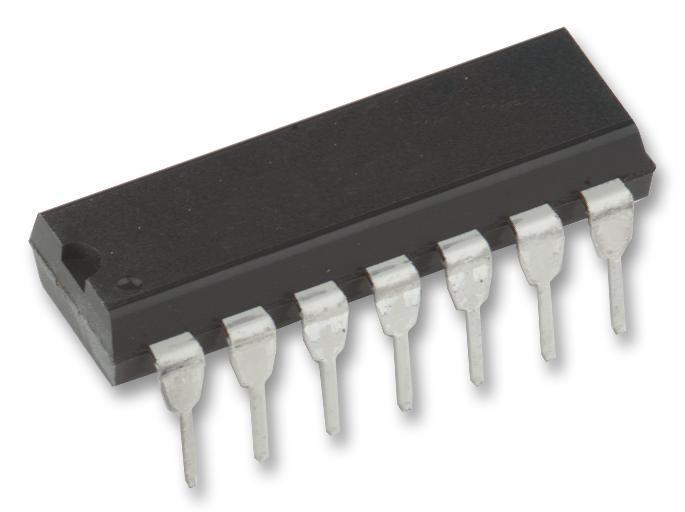

4 / Quad Channel, 2 Input, 4.5V to 5.5V XOR (exclusive OR) Gates with TTL Compatible CMOS Inputs - CD74HCT86E
4 / Quad Channel, 2 Input, 4.5V to 5.5V XOR (exclusive OR) Gates with TTL Compatible CMOS Inputs - CD74HCT86E
Regular price
£2.09 GBP
Regular price
Sale price
£2.09 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The CD74HCT86E is a high speed quad 2-input Exclusive-OR Gate contain four independent circuits. The device provides the system designer with a means for implementation of the EXCLUSIVE OR function. Logic gates utilize silicon gate CMOS technology to achieve operating speeds similar to LSTTL gates with the low power consumption of standard CMOS integrated circuits. This device have the ability to drive 10 LSTTL loads. The HCT logic family is functionally pin compatible with the standard LS logic family.
Features
- 9ns Typical propagation delay
- Balanced propagation delay and transition times
- Significant power reduction compared to LSTTL logic ICs
- Direct LSTTL input logic compatibility
- CMOS input compatibility
| Specifications | |
|---|---|
| Logic Function | XOR (Exclusive OR) |
| No. of Elements | Quad |
| No. of Inputs | 2Inputs |
| No. of Pins | 14Pins |
| Logic Case Style | DIP |
| Product Range | 74HCT86 |
| Logic IC Family | 74HCT |
| Supply Voltage Min | 4.5V |
| Supply Voltage Max | 5.5V |
| Schmitt Trigger Input | Without Schmitt Trigger Input |
| Output Current | 4mA |
| Operating Temperature Min | -55°C |
| Operating Temperature Max | 125°C |
| Country of Origin: | Malaysia |
