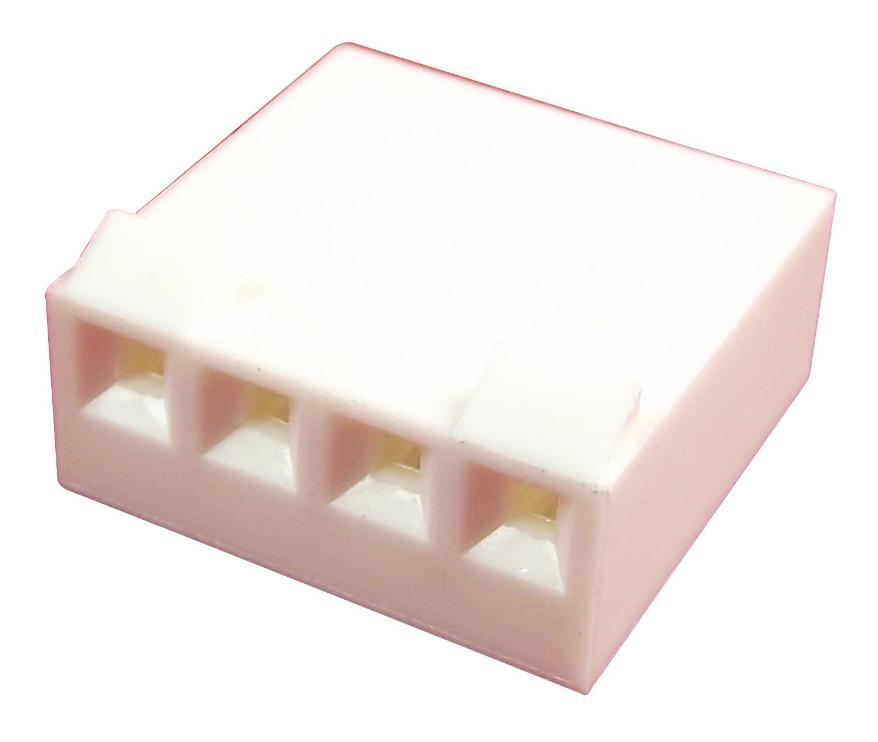

4 Way Crimp Terminal Connector Socket Receptacle House, Friction Ramp, Natural, 3.96mm Pitch - 09-50-8041
4 Way Crimp Terminal Connector Socket Receptacle House, Friction Ramp, Natural, 3.96mm Pitch - 09-50-8041
Regular price
£1.49 GBP
Regular price
Sale price
£1.49 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
KK 396 Connector System is ideal for board to board and wire to board applications. They deliver up to 7A and 600V per circuit in an industry-standard 3.96mm pitch.
Features
- Three point contact, dual cantilever terminal
- Polarizing header backwalls, polarizing ribs on receptacles
- PCB retention pegs on headers
- Friction-lock headers and receptacles
- KK RPC headers offered in high-temperature nylon and reflow matte-tin plating
| Specifications | |
|---|---|
| Product Range | KK 396 41695 - Friction Ramp Series |
| Gender | Receptacle |
| No. of Positions | 4Ways |
| Pitch Spacing | 3.96mm |
| For Use With | 797582145, 797582146 Crimp Terminals |
| Country of Origin: | India |
