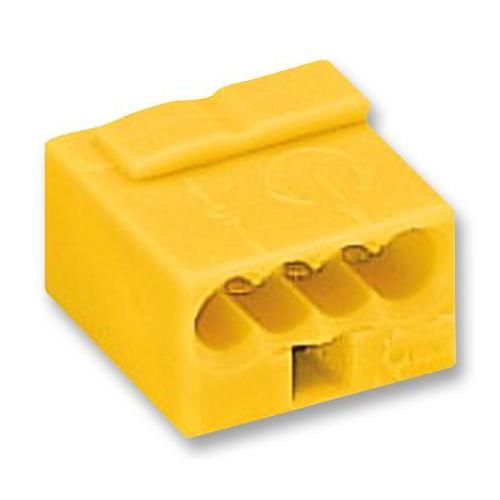

4 Way Micro Push Wire Terminal Block, Yellow - 243-504
4 Way Micro Push Wire Terminal Block, Yellow - 243-504
Regular price
£1.69 GBP
Regular price
Sale price
£1.69 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The 243 series MICRO PUSH WIRE® Connector is for junction boxes for solid conductor has proven its success a million times over in low-current installations. Up to 8 solid conductors with diameters from 0.6 to 0.8mm can be connected. The mounting carrier also provides for attachment on carrier rails or smooth surfaces and for unique marking of the terminal blocks. It is suitable for use with the communications, alarms and signal applications.
Features
- MICRO PUSH WIRE® Connector for Junction Boxes
- Solid Conductors: 0.6-0.8mmØ
- Current Rating: 6A
- Voltage Rating: 100V
- W: 10mm x H: 6.8mm x D: 10mm
- Ambient Temperature: 60°C
- Yellow
- Side entry wiring type
| Specifications | |
|---|---|
| Product Range | Micro Push Wire 243 Series |
| No. of Contacts | 4Contacts |
| Connector Type | Terminal Block, Standard |
| Connector Mounting | Cable Mount |
| Wire Size AWG Max | 20AWG |
| Wire Size AWG Min | 22AWG |
| Contact Plating | Tin Plated Contacts |
| Contact Material | Copper |
| Country of Origin: | Germany |
