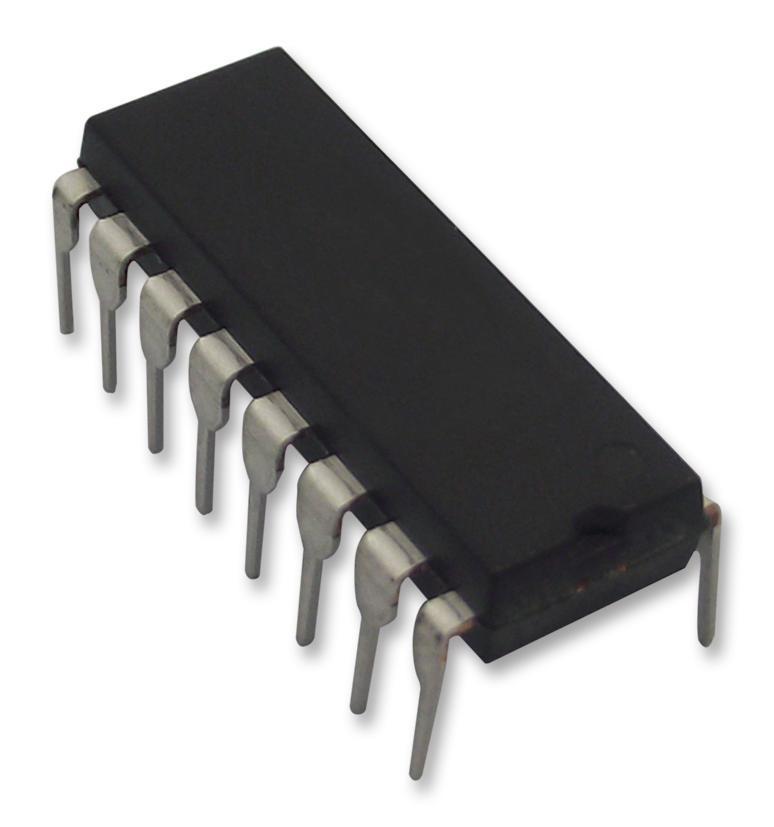

4000 CMOS, 40174 - CD40174BE
4000 CMOS, 40174 - CD40174BE
Regular price
£1.89 GBP
Regular price
Sale price
£1.89 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The CD40174BE is a CMOS Hex D-type Flip-Flop consists of six identical 'D'-type flip-flops having independent data inputs. The clock and clear inputs are common to all six units. Data are transferred to the Q outputs on the positive-going transition of the clock pulse. All sic flip-flops are simultaneously reset by a low level on the clear input.
Features
- Standardized, symmetrical output characteristics
- 100% Tested for quiescent current at 20V
- Maximum input current of 1μA at 18V
- Green product
| Specifications | |
|---|---|
| Logic Family / Base Number | CD40174 |
| Flip-Flop Type | D |
| Propagation Delay | 50ns |
| Frequency | 8MHz |
| Output Current | 6.8mA |
| Logic Case Style | DIP |
| No. of Pins | 16Pins |
| Trigger Type | Positive Edge |
| IC Output Type | Non Inverted |
| Supply Voltage Min | 3V |
| Supply Voltage Max | 18V |
| Logic IC Family | CD4000 |
| Logic IC Base Number | 40174 |
| Operating Temperature Min | -55°C |
| Operating Temperature Max | 125°C |
| Product Range | CD4000 LOGIC Series |
| Country of Origin: | Malaysia |
