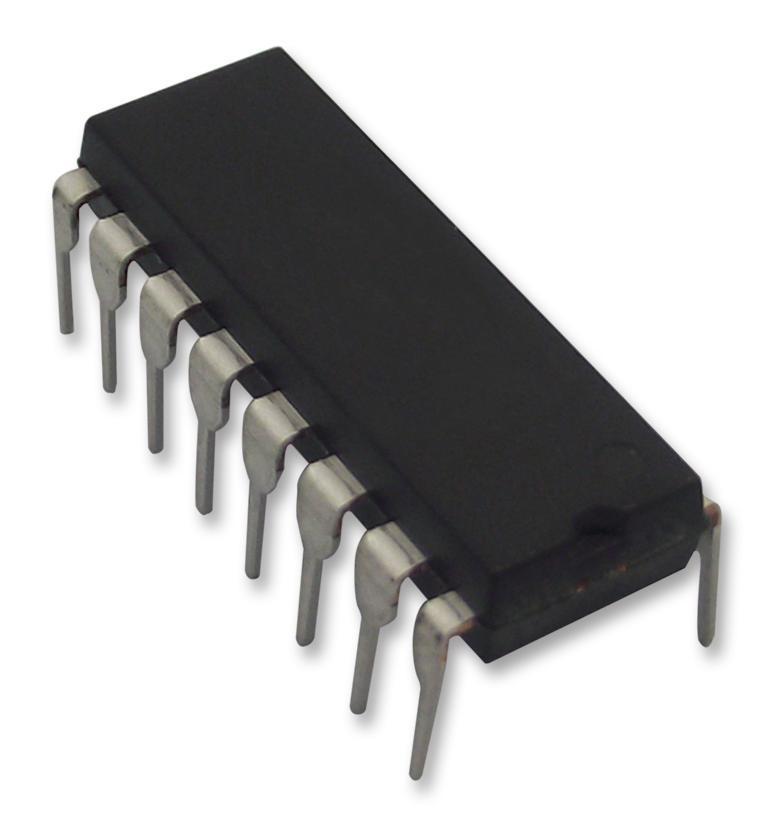

4000 CMOS, 4040, DIP16, 18V - CD4040BE
4000 CMOS, 4040, DIP16, 18V - CD4040BE
Regular price
£2.19 GBP
Regular price
Sale price
£2.19 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The CD4040BE is a CMOS 12-stage ripple-carry binary counter/divider, counter stages are flip-flops. The state of a counter advances one count on the negative transition of each input pulse; a high level on the reset line resets the counter to its all zeros state. Schmitt trigger action on the input-pulse line permits unlimited rise and fall times. All inputs and outputs are buffered.
Features
- Medium-speed operation
- Fully static operation
- Buffered inputs and outputs
- 100% tested for quiescent current at 20V
- Standardized, symmetrical output characteristics
- Fully static operation
- Maximum input current of 1μA at 18V
- Green product
| Specifications | |
|---|---|
| Logic Family / Base Number | CD4040 |
| Counter Type | Ripple Carry Binary / Divider |
| Clock Frequency | 24MHz |
| Count Maximum | 4095 |
| Logic Case Style | DIP |
| No. of Pins | 16Pins |
| Supply Voltage Min | 3V |
| Supply Voltage Max | 18V |
| Logic IC Family | CD4000 |
| Logic IC Base Number | 4040 |
| Operating Temperature Min | -55°C |
| Operating Temperature Max | 125°C |
| Product Range | CD4000 LOGIC Series |
| Country of Origin: | Malaysia |
