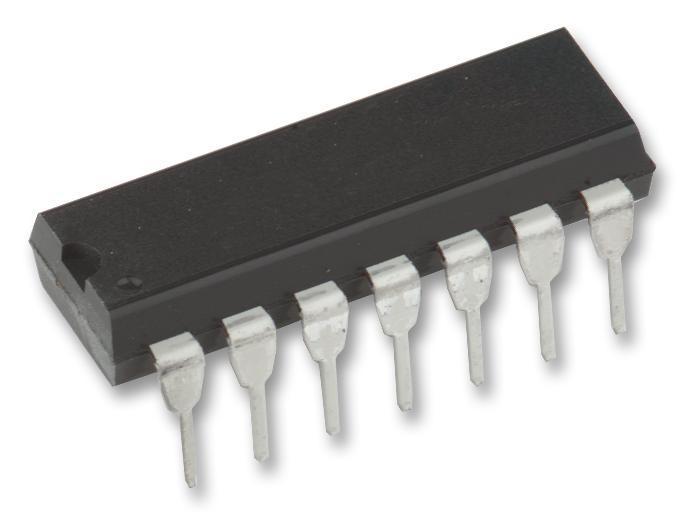

4000 CMOS Logic, 3 I/P NOR Gate - CD4025BE

4000 CMOS Logic, 3 I/P NOR Gate - CD4025BE

£1.79 GBP
£1.79 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

The CD4025BE is a CMOS triple 3-input NOR Gate provide the system designer with direct implementation of the NOR function and supplement the existing family of CMOS gates. All inputs and outputs are buffered. It meets all requirements of JEDEC tentative standard no. 13B, "standard specifications for description of 'B' series CMOS devices".

Features

  • Propagation delay time = 60ns (typ.) at CL=50pF, VDD=10V
  • Buffered inputs and outputs
  • Standardized symmetrical output characteristics
  • 100% Tested for maximum quiescent current at 20V
  • Maximum input current of 1μA at 18V

Specifications
Logic Function NOR Gate
No. of Elements Triple
No. of Inputs 3Inputs
No. of Pins 14Pins
Logic Case Style DIP
Product Range 4025
Logic IC Family 4000B
Supply Voltage Min 3V
Supply Voltage Max 18V
Schmitt Trigger Input Without Schmitt Trigger Input
Output Current 6.8mA
Operating Temperature Min -55°C
Operating Temperature Max 125°C
Country of Origin: Malaysia

EAN:
Manufacturer Part Number:
