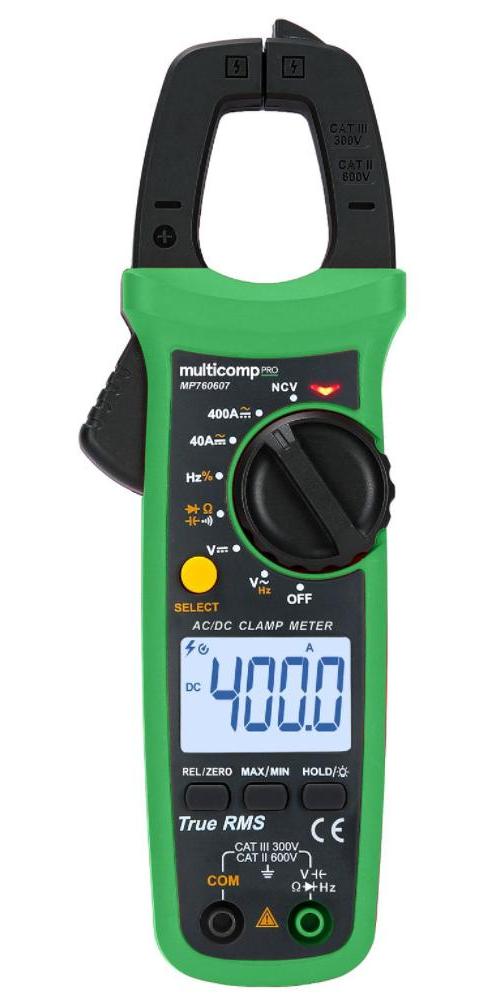

400A AC/DC Clamp Meter, 28mm Jaw - MP760607
400A AC/DC Clamp Meter, 28mm Jaw - MP760607
Regular price
£58.59 GBP
Regular price
Sale price
£58.59 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The MP760607 is a portable true RMS AC/DC clamp meter with automatic range, designed according to EN61010-1 CAT II 600V / CAT III 300V safety standards, and comes with full-function protection which ensures users a safe and reliable measurement experience. Aside from basic measurement functions, it also has high precision current scale and high voltage frequency measurement extension.
Features
- True RMS measurement
- Audio visual NCV detection
- High voltage frequency range: 10Hz - 60KHz; low voltage frequency range: 60Hz - 10MHz
- 4000 display count
- Auto range
- 28mm jaw opening
- Continuity test
- MAX/MIN modes
- Relative mode
- Zero mode
- Data hold
- Low battery indication
- Auto power off
- 1.5V battery (AAA x2)
- Device weight is 235g
- Dimension is 215mm x 63mm x 36mm
| Specifications | |
|---|---|
| DMM Functions | AC/DC Current, AC/DC Voltage, Capacitance, Continuity, Diode, Frequency, Resistance |
| Current Measure AC Max | 400A |
| Voltage Measure AC Max | 600V |
| Voltage Measure DC Max | 600V |
| Resistance Measure Max | 40Mohm |
| DMM Response Type | True RMS |
| Range Selection | Auto, Manual |
| No. of Digits | 3.75 |
| Jaw Opening Max | 28mm |
| Product Range | Multicomp Pro Clamp Meters |
| Country of Origin: | China |
