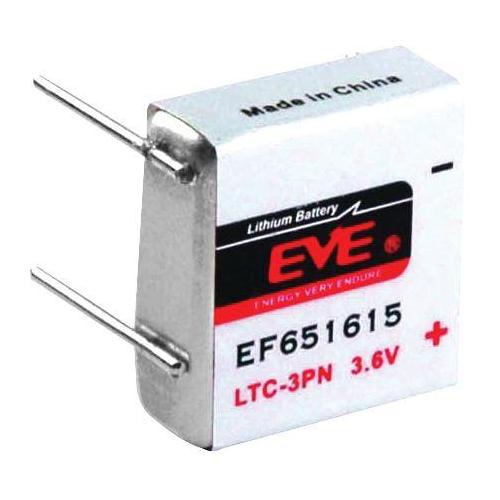

400mAh 3.6V Lithium Thionyl Chloride Battery, PCB Mount - EF651615
400mAh 3.6V Lithium Thionyl Chloride Battery, PCB Mount - EF651615
Regular price
£16.79 GBP
Regular price
Sale price
£16.79 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The EF651615 is a 3.6V/400mAh Non-rechargeable Battery features a lithium thionyl chloride technology and PCB pins terminals. High and stable operating voltage. High minimum voltage during pulsing. Low self discharge rate (less than 1% after 1 year of storage at 25°C). Nominal capacity at 0.5mA, 25°C, 2V cut-off. The capacity restored by the cell varies according to current drain, temperature and cut-off voltage.
Features
- Stainless steel container
- Hermetic glass-to-metal sealing
- Non-flammable electrolyte
- Non-restricted for transport
- 20mA Maximum pulse current capability
- -55 to 85°C Operating temperature range
- LTC-3PN
| Specifications | |
|---|---|
| Battery Voltage | 3.6V |
| Battery Technology | Lithium Thionyl Chloride |
| Battery Capacity | 400mAh |
| Battery Terminals | PCB Pins |
| External Height | 6.8mm |
| External Width | 16.8mm |
| External Depth | 15.8mm |
| Pack Quantity | 1 |
| Weight | 5g |
| Important Product Warning: | Fire, explosion and severe burn hazard. Do not recharge, crush, disassemble, heat above 100 C, incinerate or expose contents to water. |
| Country of Origin: | China |
